Honda BF2.3DH LCHU Outboard engine images
Explore every detailView specifications
Honda BF2.3DH LCHU Outboard engine
The Honda BF2.3DH LCHU is a four-stroke engine with a long shaft, manual starting and tiller control. Its 14 kg dry weight and carrying handle make handling easier during mounting and transport. Choose this version after checking compatibility with the boat transom.
- Power (metric hp) : 2.3 CP
- Shaft length : Long
- Weight : 14 kg
€940.17
Tax included
lei5,058.56
GET TO KNOW YOUR CHOICE
Explore the details.
Transport and straightforward operation
The engine has a built-in 1.1-litre tank and is started manually with a recoil starter. The throttle control is on the tiller, and the centrifugal clutch allows idling without driving the propeller. The propeller engages automatically as the throttle is increased.
Manoeuvring and adjustment
Steer by turning the engine; for reverse, rotate it through 180°. The tilt angle is adjusted manually in four positions. The engine uses forced-air cooling.
Choose the appropriate shaft
LCHU is the long shaft version. Before ordering, check the transom height and the boat manufacturer’s recommendation. This model has no alternator for charging an onboard battery. Dimensions and other specifications are grouped in the “Technical data” tab.

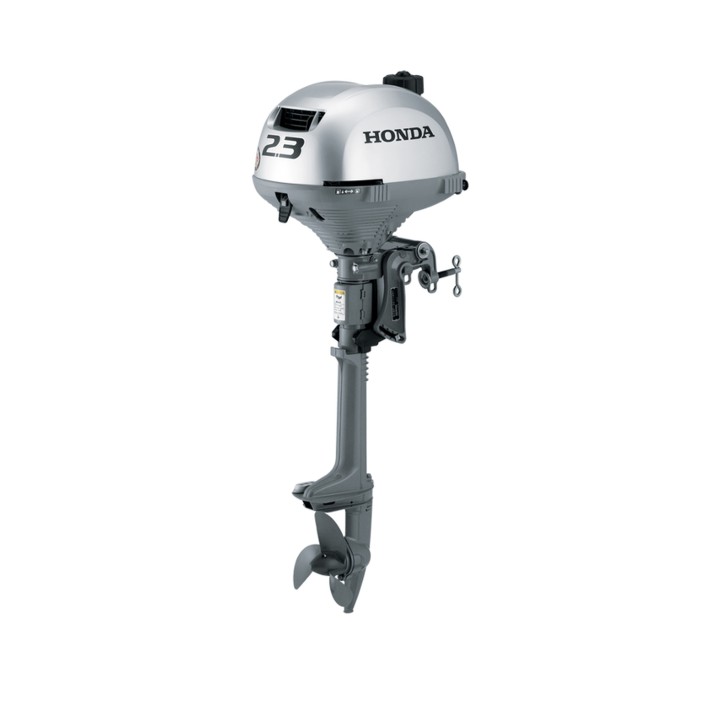

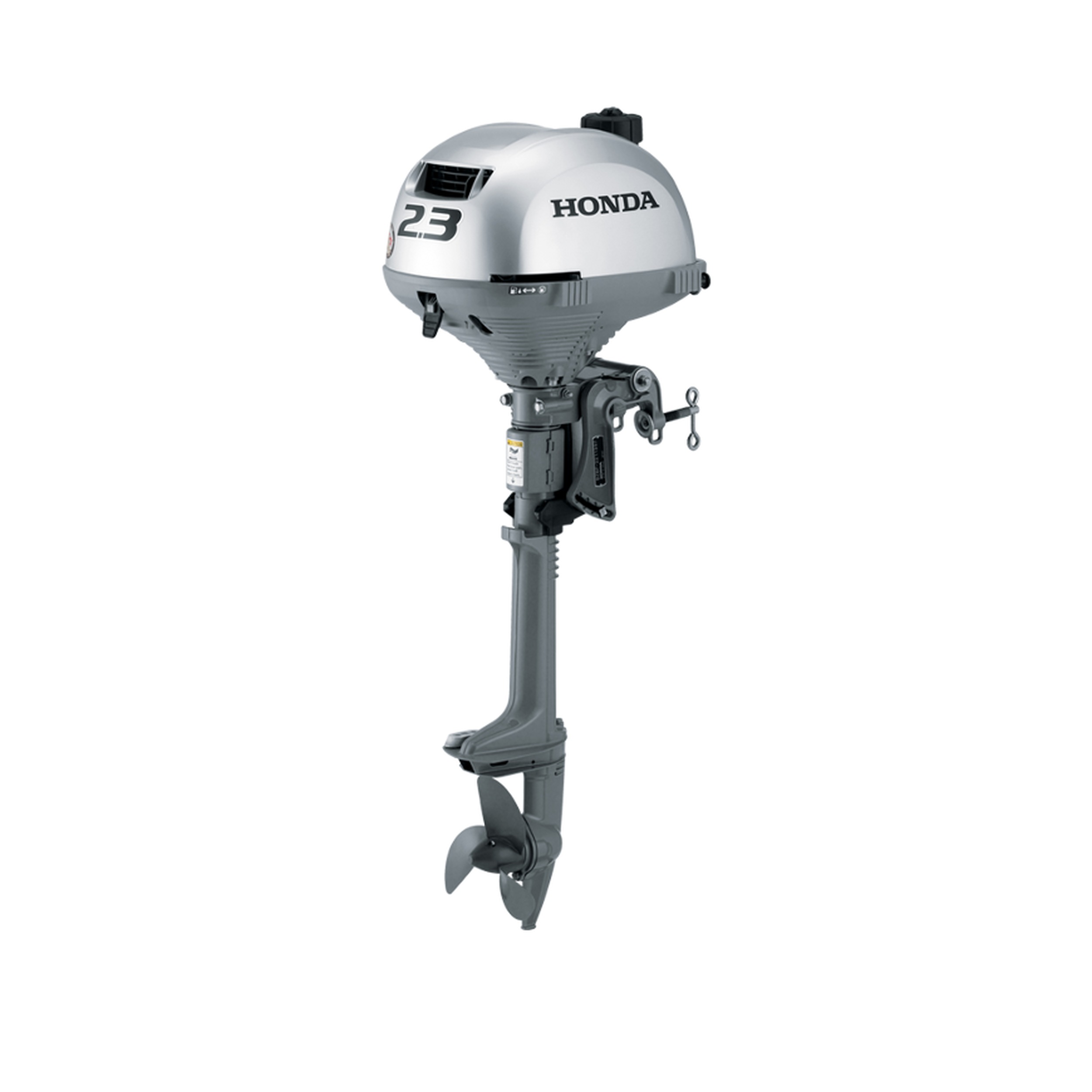

The image shows the Honda BF2.3 range. The controls and shaft length are those specified for the BF2.3DH LCHU version.
Engine and performance
|
Power (metric hp)
|
2.3 CP |
|---|---|
|
Displacement (cm³)
|
57 cm³ |
|
Cylinders
|
1 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.42:1 |
Use and compatibility
|
Shaft length
|
Long |
|---|---|
|
Shaft height
|
571 mm |
Controls and adjustments
|
Control type
|
Tiller control |
|---|---|
|
Starting
|
Manual recoil starting |
|
Trim
|
Manual, 4 positions |
Systems and supply
|
Alternator output
|
No alternator |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
410 mm |
|---|---|
|
Width
|
280 mm |
|
Height
|
1100 mm |
|
Weight
|
14 kg |
Product details
-
Brand
-
ReferenceBF2.3DH LCHU
-
In stock1 Item
-
EAN13 code
