Honda BF2.3DH SCHU Outboard engine
Honda BF2.3DH SCHU, four-stroke outboard engine rated at 2.3 metric hp, with a short shaft. Manual recoil starting and tiller control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 2.3 CP
- Shaft length : Short
- Weight : 13.5 kg
€874.83
Tax included
lei4,707.00
GET TO KNOW YOUR CHOICE
Explore the details.
The Honda BF2.3DH SCHU is the short shaft version of the Honda four-stroke 2.3 metric hp engine, with a dry weight of 13.5 kg.
Transport and straightforward operation
The built-in 1.1-litre tank and carrying handle form part of this model’s portable configuration. Starting is manual and the throttle is controlled from the tiller. The centrifugal clutch allows idling without driving the propeller and engages it as the throttle is increased.
Manoeuvring and adjustment
Steer by turning the engine; for reverse, rotate it through 180°. The tilt angle is adjusted manually in four positions and cooling is by forced air.
Choose the appropriate shaft
SCHU is the short shaft version. Check the boat transom and the manufacturer’s recommendation before choosing. This engine has no alternator for charging an onboard battery. Full dimensions are in the “Technical data” tab.

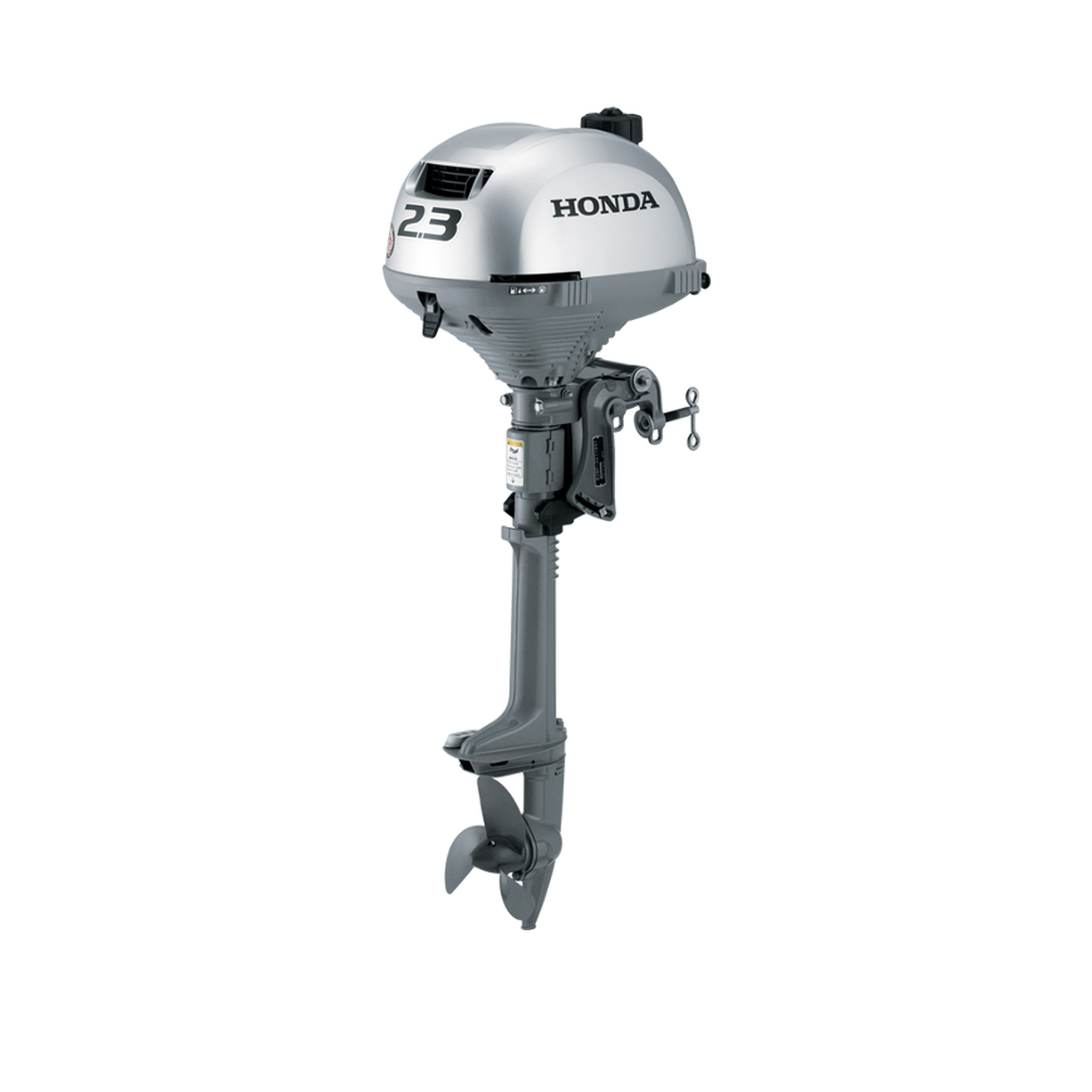

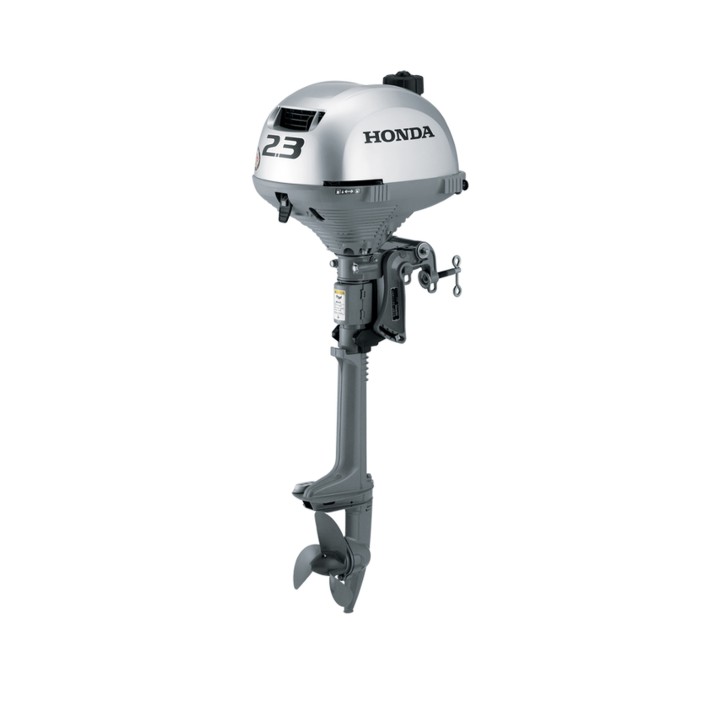

Presentation image of the Honda 2.3 range. The controls and shaft length are those specified for this version.
Engine and performance
|
Power (metric hp)
|
2.3 CP |
|---|---|
|
Displacement (cm³)
|
57 cm³ |
|
Cylinders
|
1 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.42:1 |
Use and compatibility
|
Shaft length
|
Short |
|---|---|
|
Shaft height
|
418 mm |
Controls and adjustments
|
Control type
|
Tiller control |
|---|---|
|
Starting
|
Manual recoil starting |
|
Trim
|
Manual, 4 positions |
Systems and supply
|
Alternator output
|
No alternator |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
410 mm |
|---|---|
|
Width
|
280 mm |
|
Height
|
945 mm |
|
Weight
|
13.5 kg |
Product details
-
Brand
-
ReferenceBF2.3DH SCHU
-
In stock1 Item
-
EAN13 code
