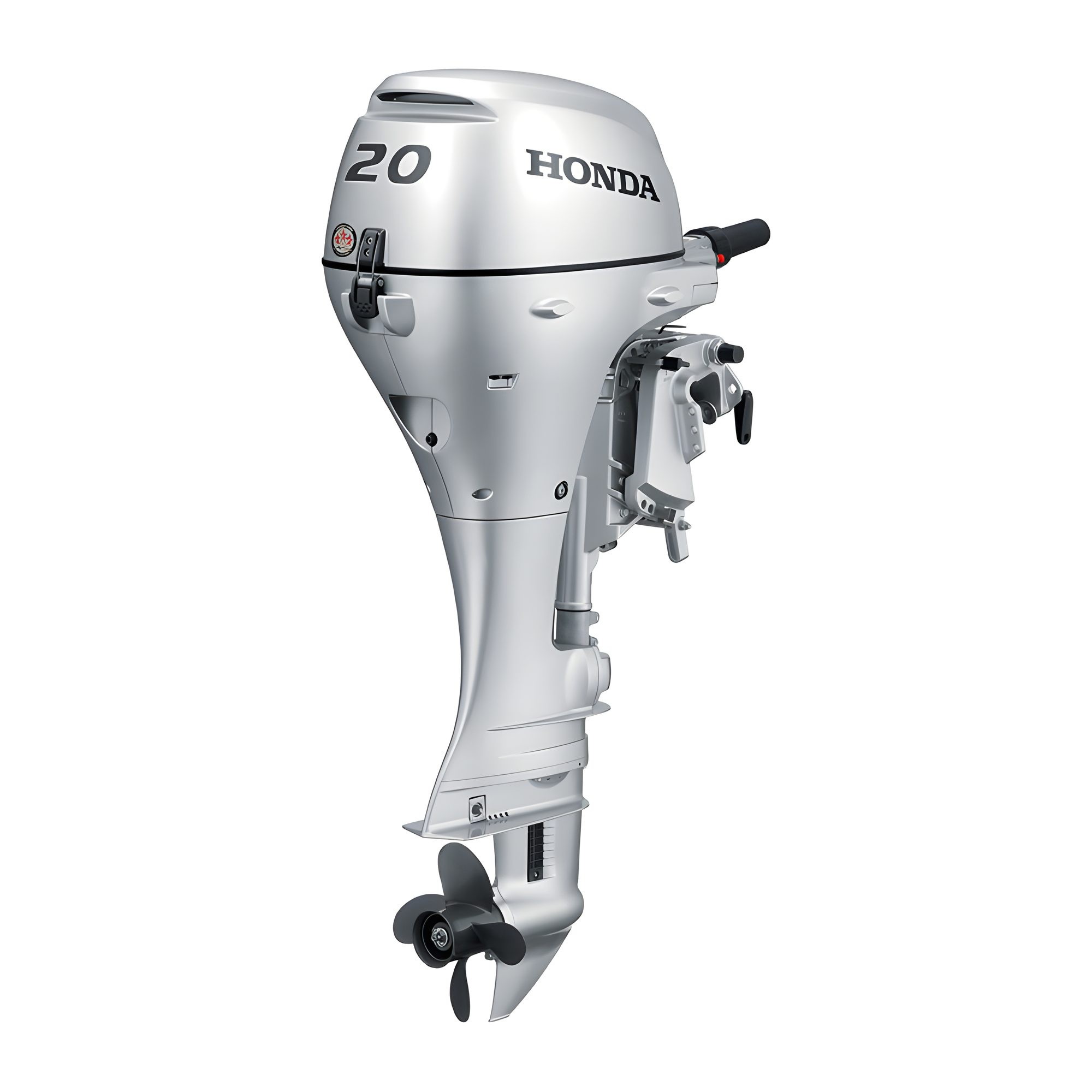

Honda BF20DK2 LHGU Outboard engine
Honda BF20DK2 LHGU, four-stroke outboard engine rated at 20 metric hp, with a long shaft. Manual recoil starting and tiller control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 20 CP
- Shaft length : Long
- Weight : 53 kg
€3,695.34
Tax included
lei19,882.67
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF20DK2 LHGU is the 20 metric hp version with a long shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Throttle and steering are controlled from the engine tiller. This version is for a boat configured for tiller control. The engine is started manually with a recoil starter.
Mounting and adjustment
This version has a long shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Tilting is gas-assisted. Make adjustments only in the positions and conditions specified in the manual.
Engine and performance
|
Power (metric hp)
|
20 CP |
|---|---|
|
Displacement (cm³)
|
350 cm³ |
|
Cylinders
|
2 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.08:1 |
Use and compatibility
|
Shaft length
|
Long |
|---|---|
|
Shaft height
|
563 mm |
Controls and adjustments
|
Control type
|
Tiller control |
|---|---|
|
Starting
|
Manual recoil starting |
|
Trim
|
Gas-assisted |
Systems and supply
|
Alternator output
|
12 V / 6 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
650 mm |
|---|---|
|
Width
|
350 mm |
|
Height
|
1240 mm |
|
Weight
|
53 kg |
Product details
-
Brand
-
ReferenceBF20DK2 LHGU
-
In stock1 Item
-
EAN13 code
