Honda BF30DK2 SHGU Outboard engine images
Explore every detailView specifications

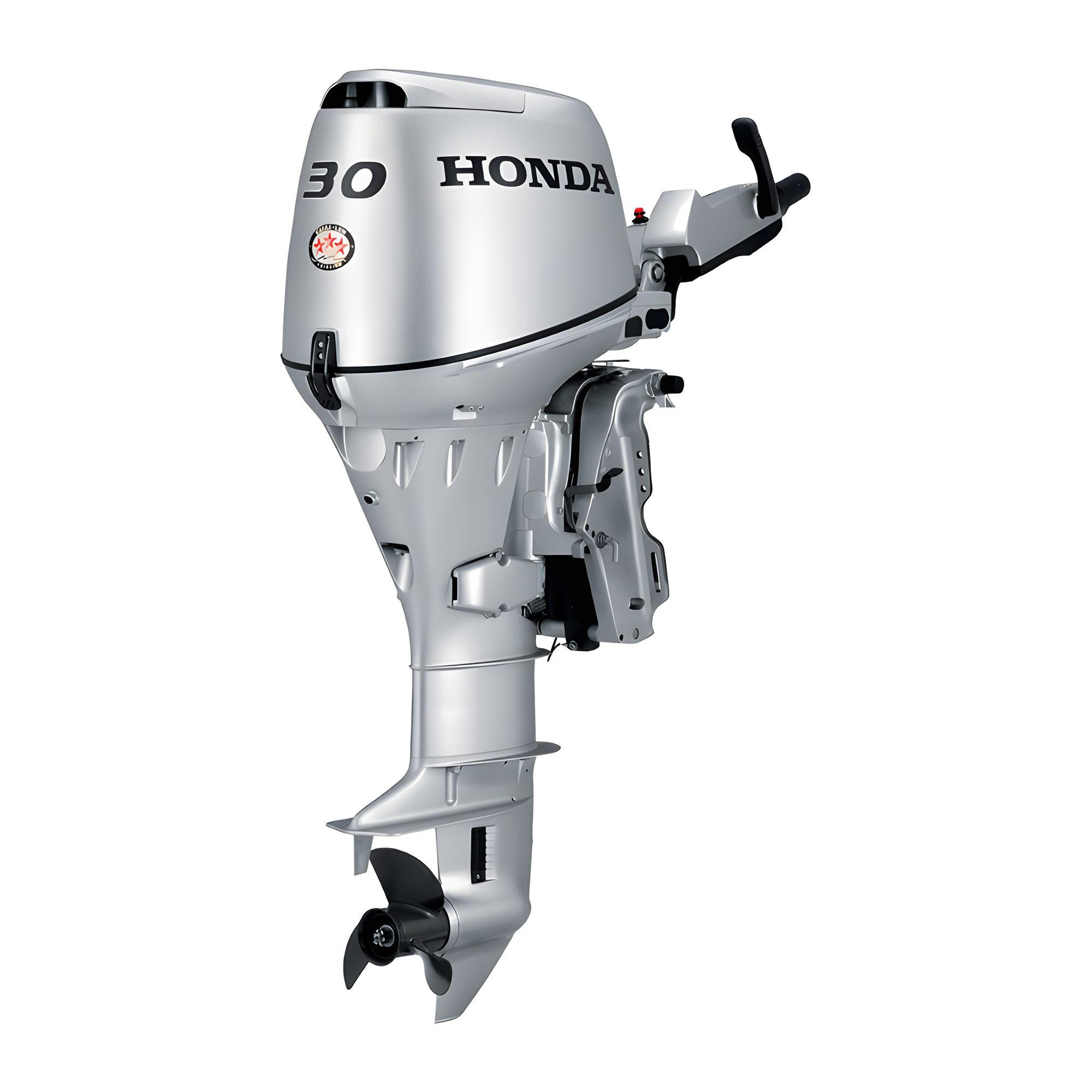

Honda BF30DK2 SHGU Outboard engine
Honda BF30DK2 SHGU, four-stroke outboard engine rated at 30 metric hp, with a short shaft. Electric starting and tiller control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 30 CP
- Shaft length : Short
- Weight : 80 kg
€5,389.34
Tax included
lei28,997.19
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF30DK2 SHGU is the 30 metric hp version with a short shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Throttle and steering are controlled from the engine tiller. This version is for a boat configured for tiller control. Electric starting requires an electrical system and starting battery sized according to the manual.
Mounting and adjustment
This version has a short shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Tilting is gas-assisted. Make adjustments only in the positions and conditions specified in the manual.
Engine and performance
|
Power (metric hp)
|
30 CP |
|---|---|
|
Displacement (cm³)
|
552 cm³ |
|
Cylinders
|
3 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.08:1 |
Use and compatibility
|
Shaft length
|
Short |
|---|---|
|
Shaft height
|
431 mm |
Controls and adjustments
|
Control type
|
Tiller control |
|---|---|
|
Starting
|
Electric |
|
Trim
|
Gas-assisted |
Systems and supply
|
Alternator output
|
12 V / 10 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
720 mm |
|---|---|
|
Width
|
375 mm |
|
Height
|
1195 mm |
|
Weight
|
80 kg |
Product details
-
Brand
-
ReferenceBF30DK2 SHGU
-
In stock1 Item
-
EAN13 code
