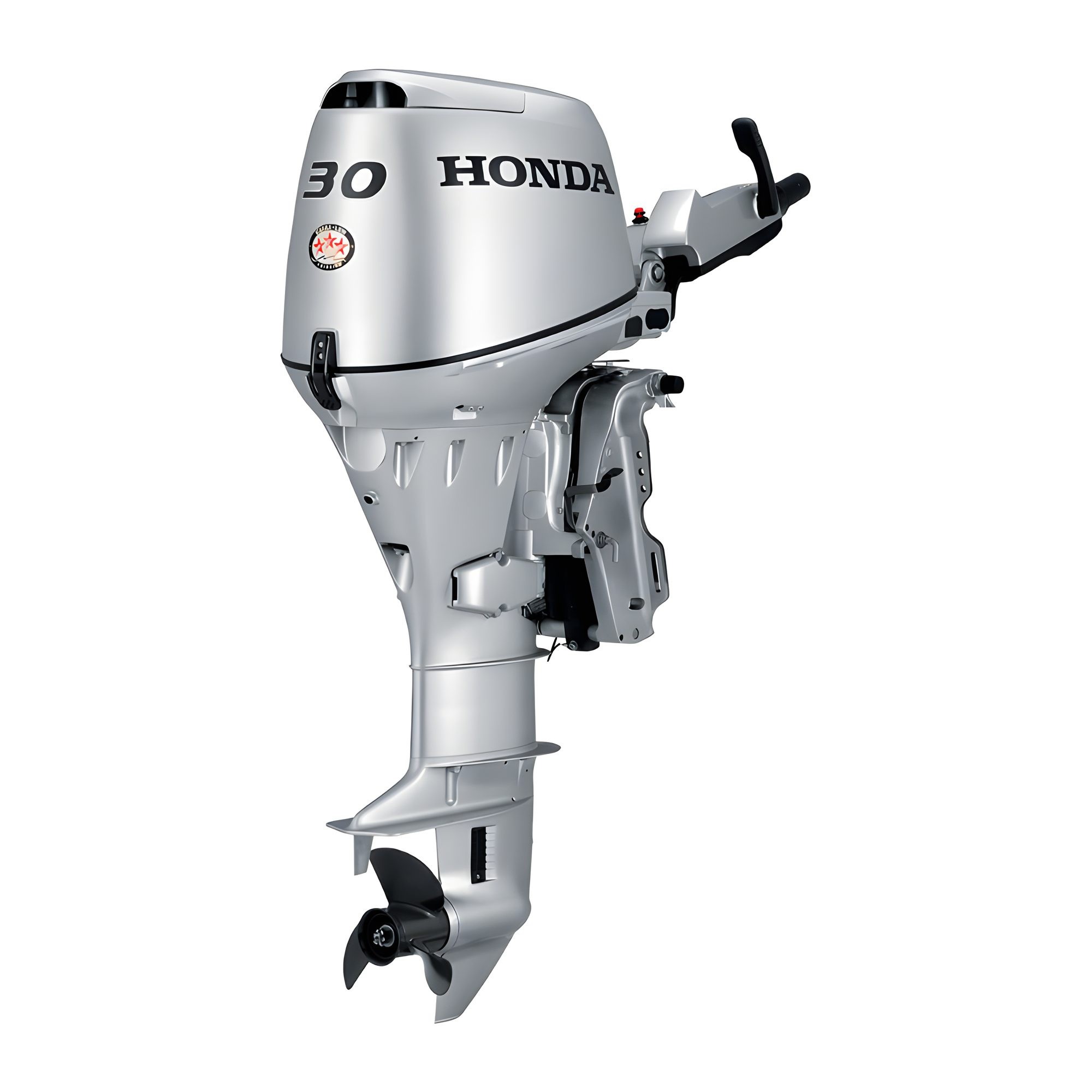

Honda BF30DK2 SRTU Outboard engine
Honda BF30DK2 SRTU, four-stroke outboard engine rated at 30 metric hp, with a short shaft. Electric starting and remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 30 CP
- Shaft length : Short
- Weight : 77.5 kg
€5,543.01
Tax included
lei29,824.01
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF30DK2 SRTU is the 30 metric hp version with a short shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Remote controls are installed at the boat’s helm. Match the configuration to the existing control system and mounting arrangement. Electric starting requires an electrical system and starting battery sized according to the manual.
Mounting and adjustment
This version has a short shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Power Trim & Tilt provides electric trim adjustment and engine tilting through dedicated controls, within the limits specified in the manual.
Engine and performance
|
Power (metric hp)
|
30 CP |
|---|---|
|
Displacement (cm³)
|
552 cm³ |
|
Cylinders
|
3 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.08:1 |
Use and compatibility
|
Shaft length
|
Short |
|---|---|
|
Shaft height
|
431 mm |
Controls and adjustments
|
Control type
|
Remote control |
|---|---|
|
Starting
|
Electric |
|
Trim
|
Power Trim & Tilt |
Systems and supply
|
Alternator output
|
12 V / 10 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
720 mm |
|---|---|
|
Width
|
375 mm |
|
Height
|
1195 mm |
|
Weight
|
77.5 kg |
Product details
-
Brand
-
ReferenceBF30DK2 SRTU
-
In stock1 Item
-
EAN13 code
