Honda BF100AK1 LRTU Outboard engine images
Explore every detailView specifications

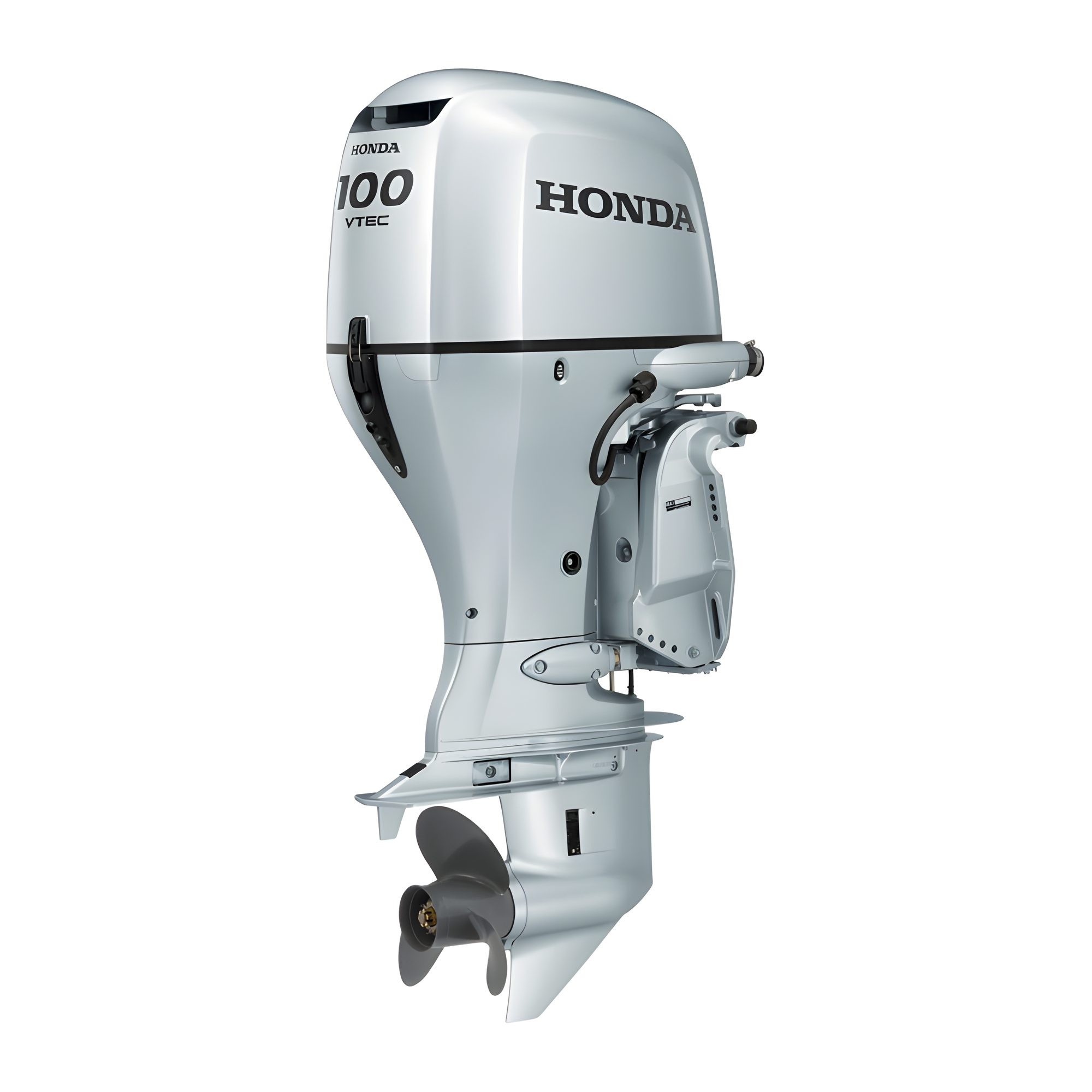

Honda BF100AK1 LRTU Outboard engine
Honda BF100AK1 LRTU, four-stroke outboard engine rated at 100 metric hp, with a long shaft. Electric starting and remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 100 CP
- Shaft length : Long
- Weight : 166 kg
€12,037.08
Tax included
lei64,765.17
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF100AK1 LRTU is the 100 metric hp version with a long shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Remote controls are installed at the boat’s helm. Match the configuration to the existing control system and mounting arrangement. Electric starting requires an electrical system and starting battery sized according to the manual.
Mounting and adjustment
This version has a long shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Power Trim & Tilt provides electric trim adjustment and engine tilting through dedicated controls, within the limits specified in the manual.
Engine and performance
|
Power (metric hp)
|
100 CP |
|---|---|
|
Displacement (cm³)
|
1496 cm³ |
|
Cylinders
|
4 |
|
Maximum engine speed
|
5500–6300 rpm |
|
Gear ratio
|
2.33:1 |
Use and compatibility
|
Shaft length
|
Long |
|---|---|
|
Shaft height
|
537 mm |
Controls and adjustments
|
Control type
|
Remote control |
|---|---|
|
Starting
|
Electric |
|
Trim
|
Power Trim & Tilt |
Systems and supply
|
Alternator output
|
Alternator 44 A; battery charging 35 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
Compatible (kit not included) |
|---|
Dimensions and weight
|
Length
|
742 mm |
|---|---|
|
Width
|
459 mm |
|
Height
|
1576 mm |
|
Weight
|
166 kg |
Product details
-
Brand
-
ReferenceBF100AK1 LRTU
-
In stock1 Item
-
EAN13 code
