Honda BF350A XDU Outboard engine images
Explore every detailView specifications
Honda BF350A XDU Outboard engine
Honda BF350A XDU, four-stroke outboard engine rated at 350 metric hp, with an extra long shaft. Electric starting and DBW remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 350 CP
- Shaft length : Extra long
- Weight : 355 kg
€38,272.30
Tax included
lei205,923.04
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF350A XDU is the 350 metric hp version with an extra long shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
This version uses DBW remote control. Check the control system and compatible components for the boat’s helm. Electric starting requires an electrical system and starting battery sized according to the manual.
Mounting and adjustment
This version has an extra long shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Power Trim & Tilt provides electric trim adjustment and engine tilting through dedicated controls, within the limits specified in the manual.
Equipment and selection information

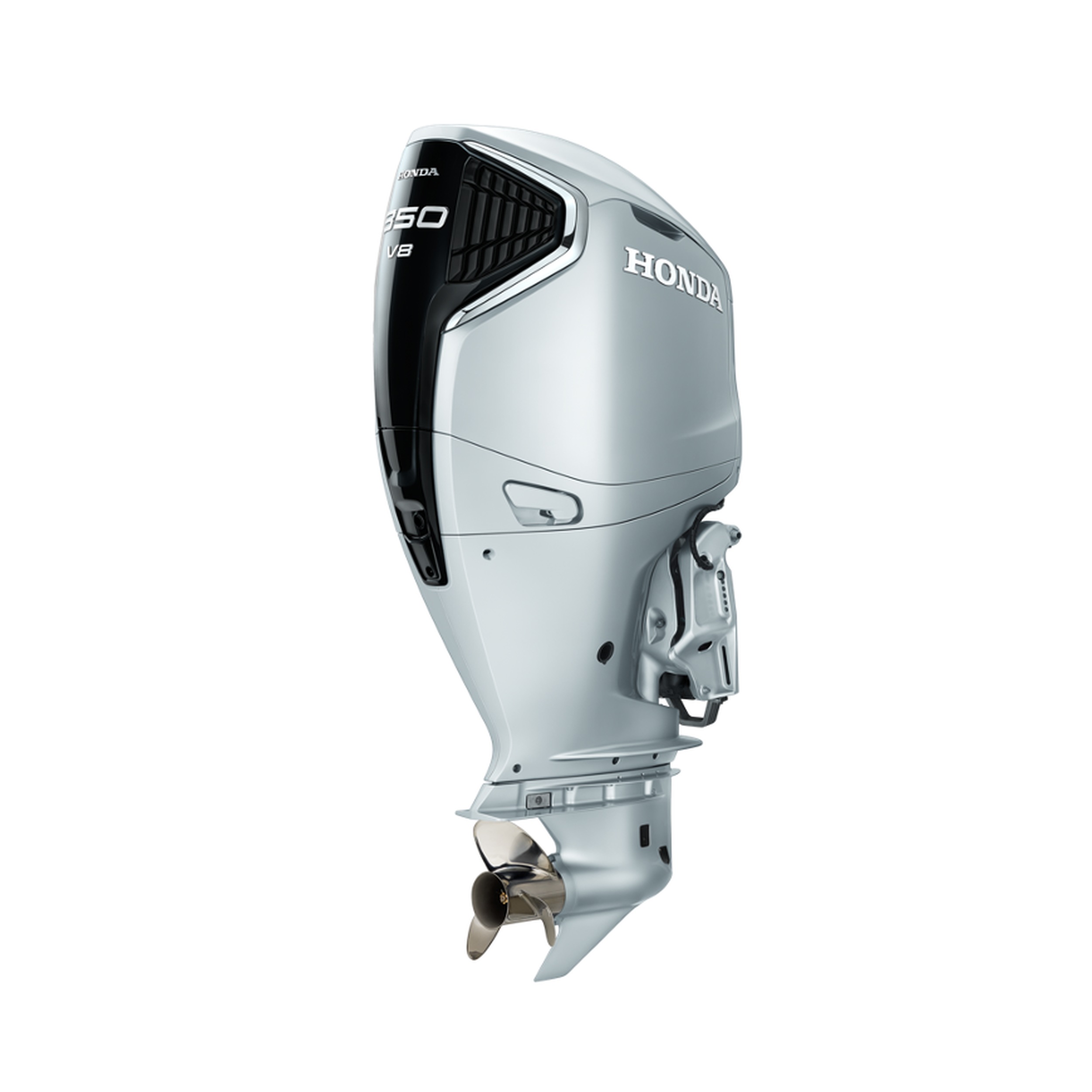

Presentation image of the Honda 350 range. The controls and shaft length are those specified for this version.
Engine and performance
|
Power (metric hp)
|
350 CP |
|---|---|
|
Displacement (cm³)
|
4952 cm³ |
|
Cylinders
|
8 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
1.79:1 |
Use and compatibility
|
Shaft length
|
Extra long |
|---|---|
|
Shaft height
|
635 mm |
Controls and adjustments
|
Control type
|
DBW remote control |
|---|---|
|
Starting
|
Electric |
|
Trim
|
Power Trim & Tilt |
Systems and supply
|
Alternator output
|
Alternator 90 A; battery charging 70 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
Yes (optional kit) |
|---|
Dimensions and weight
|
Length
|
1121 mm |
|---|---|
|
Width
|
650 mm |
|
Height
|
2145 mm |
|
Weight
|
355 kg |
Product details
-
Brand
-
ReferenceBF350A XDU
-
In stock1 Item
-
