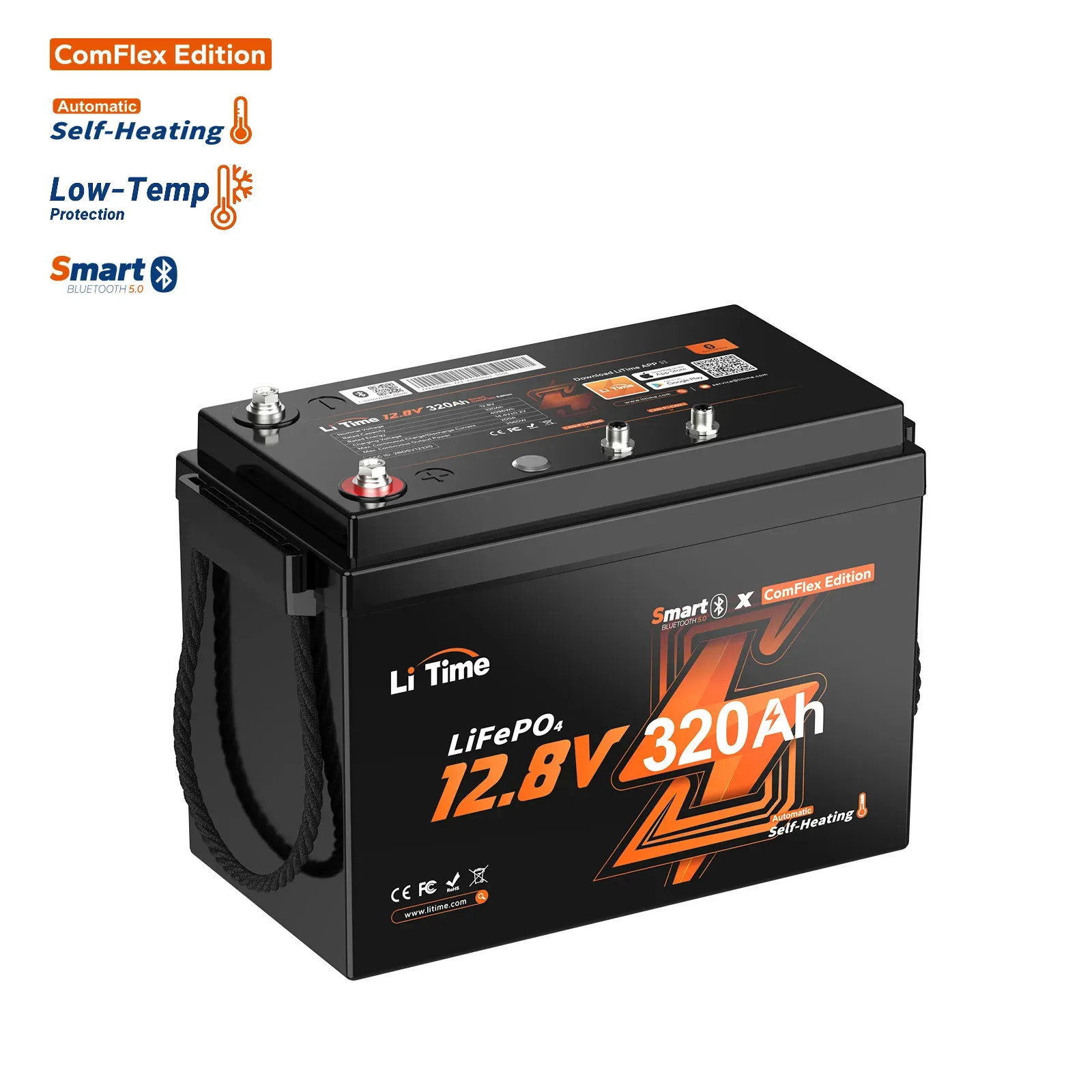

LiTime 12 V 320 Ah ComFlex Battery, Bluetooth and Self-Heating
4096 Wh,200 A BMS and CAN/RS485 communication for integration with compatible power systems.
- Rated capacity : 320 Ah
- Nominal voltage : 12.8V
- Maximum continuous discharge current : 200 A
€849.99
Tax included
lei4,573.35
GET TO KNOW YOUR CHOICE
Explore the details.

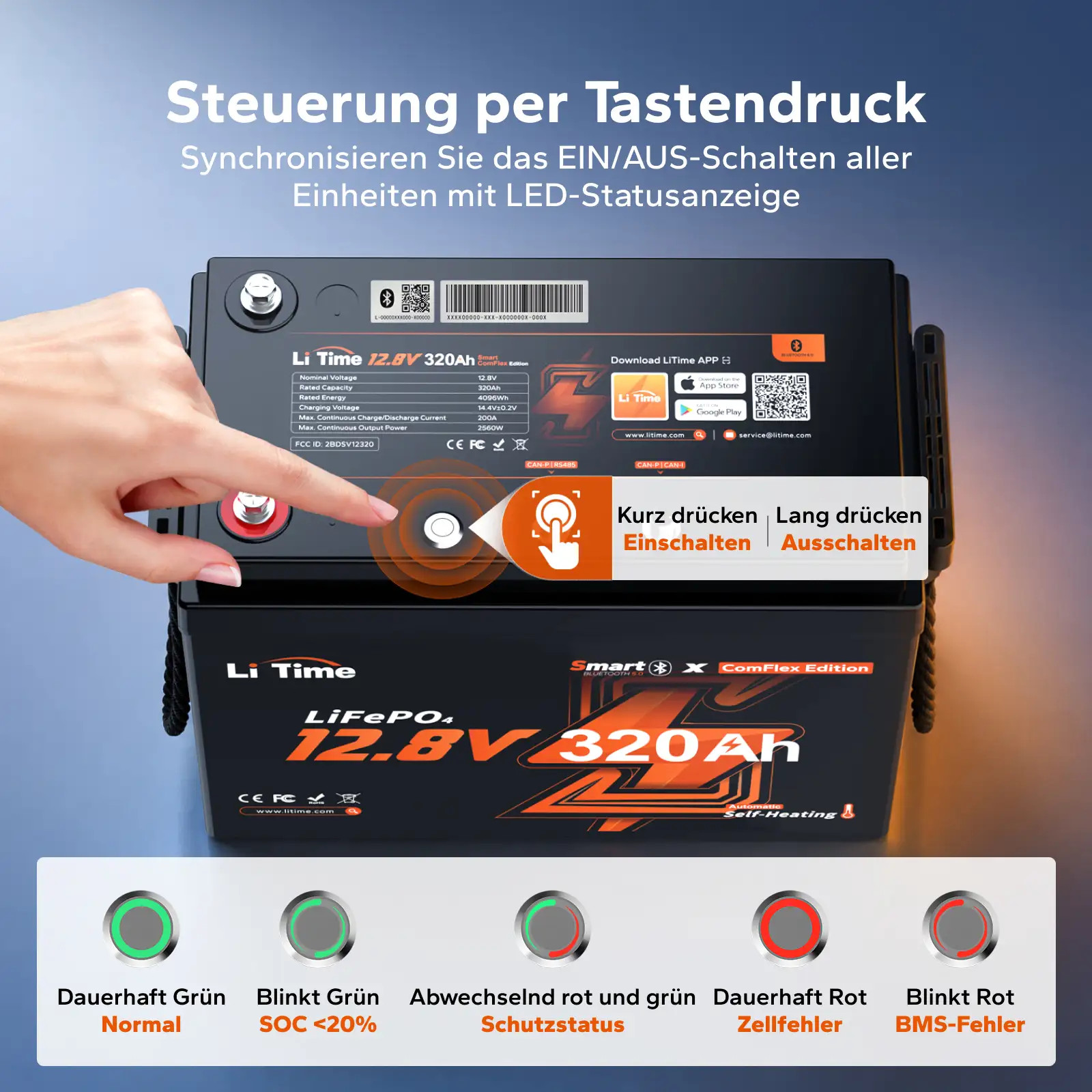

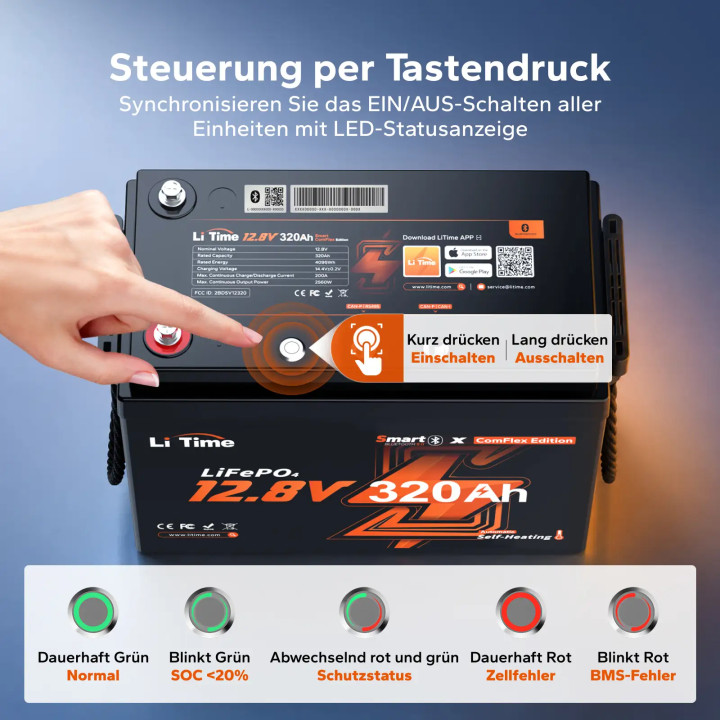

ComFlex combines Bluetooth monitoring, self-heating and communication with compatible equipment.

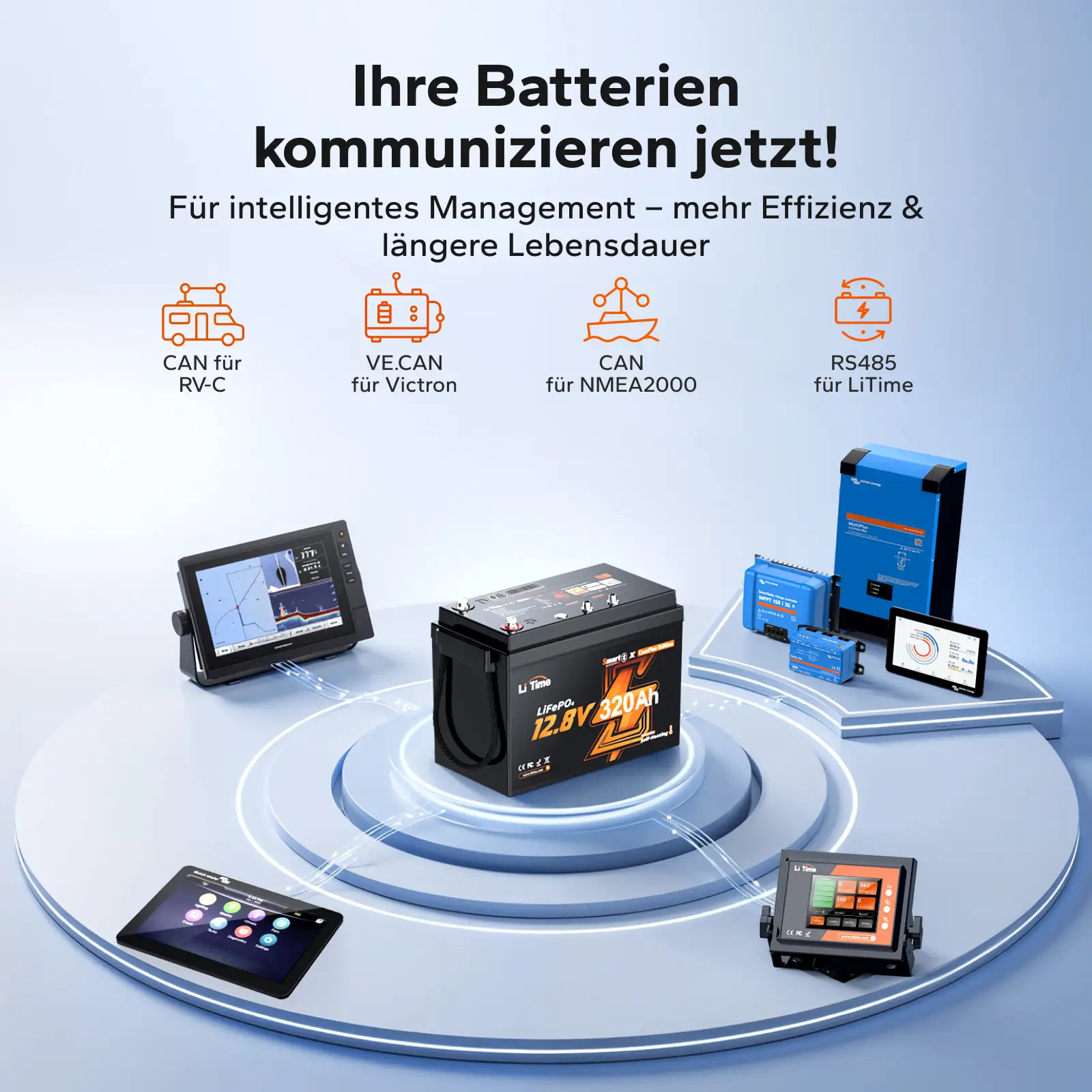

Check system interfaces and wiring. Expansion with active communication uses parallel connections; this battery is not designed for engine starting.
Safe use
Match the system voltage and current and use a compatible LiFePO4 charger. Protect the terminals against short circuits and secure the battery before use. Do not use a damaged battery or open the enclosure. Follow the charging temperature limits and instructions for the exact model. This is a service/deep-cycle battery, not a combustion-engine starting battery.
Manufacturer
Shenzhen Litime Technology Co., Ltd
Room 301, Building B, Tongzhou Electronics Longgang Factory, No. 1 Baolong 5th Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, Guangdong 518116, China
Email: [email protected]
EU responsible operator
Starrysea GmbH
Klosterkoppel 8, 25485 Bilsen, Germania / Germany
Email: [email protected]
Systems and supply
|
Nominal voltage
|
12.8V |
|---|---|
|
BMS and Bluetooth
|
BMS 200 A |
|
Rated capacity
|
320 Ah |
|
Charging voltage
|
14,4 ± 0,2 V |
|
Recommended / maximum charging current
|
64 A / 200 A |
|
Maximum continuous discharge current
|
200 A |
|
Battery expansion
|
4P4S without communication; 16P1S with communication |
|
Ingress protection
|
IP65 |
|
Compositions
|
ABS |
|
Battery details
|
LiFePO4; 4096 Wh; self-heating |
Navigation and connectivity
|
Bluetooth
|
Yes |
|---|
Dimensions and weight
|
Weight
|
27.2 kg |
|---|---|
|

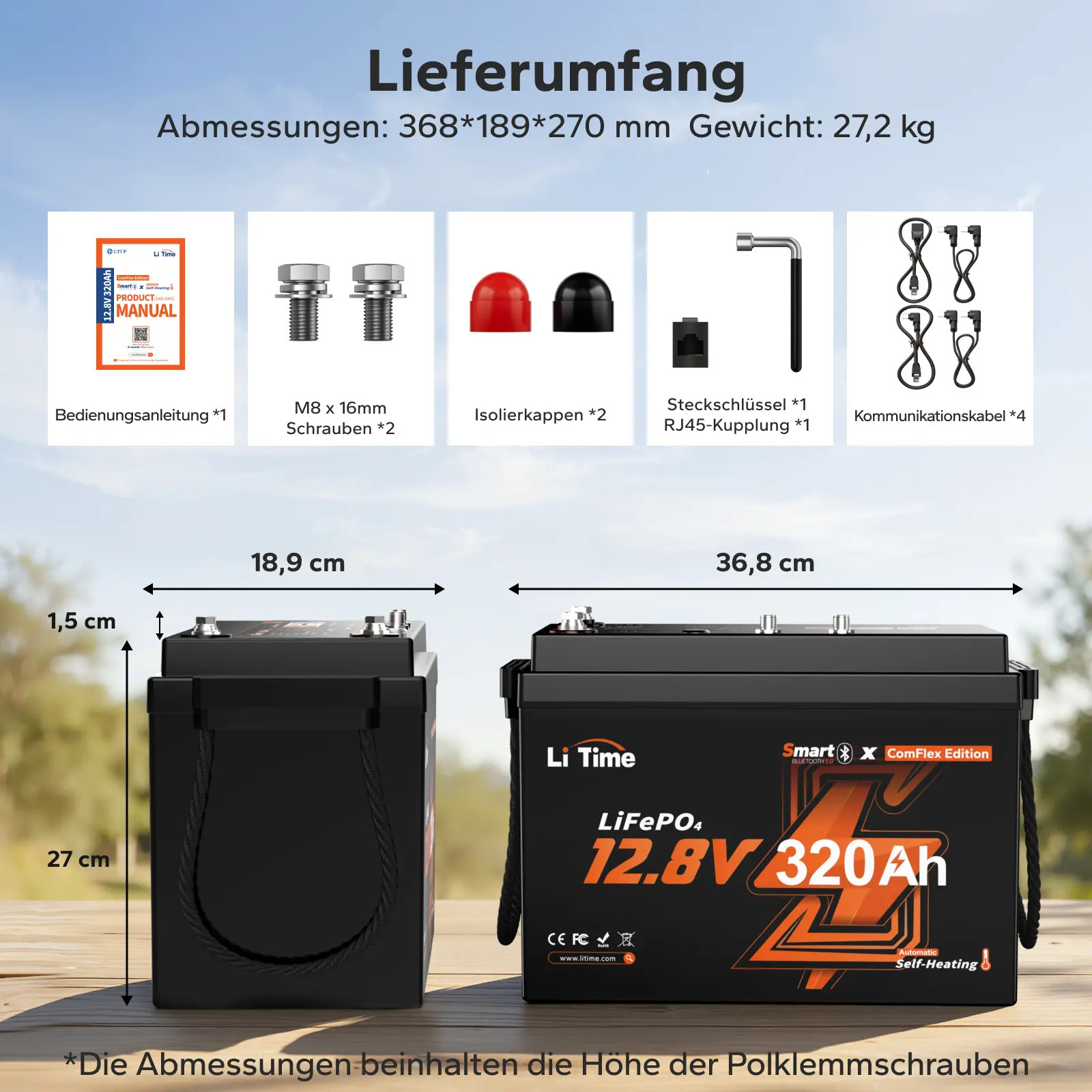

Dimensions L × W × H
|
368 × 189 × 255 mm (enclosure; 270 mm including terminal screws) |
Product details
-
Brand
-
ReferenceLT-53146703757593
-
In stock5 Items
-
EAN13 code
