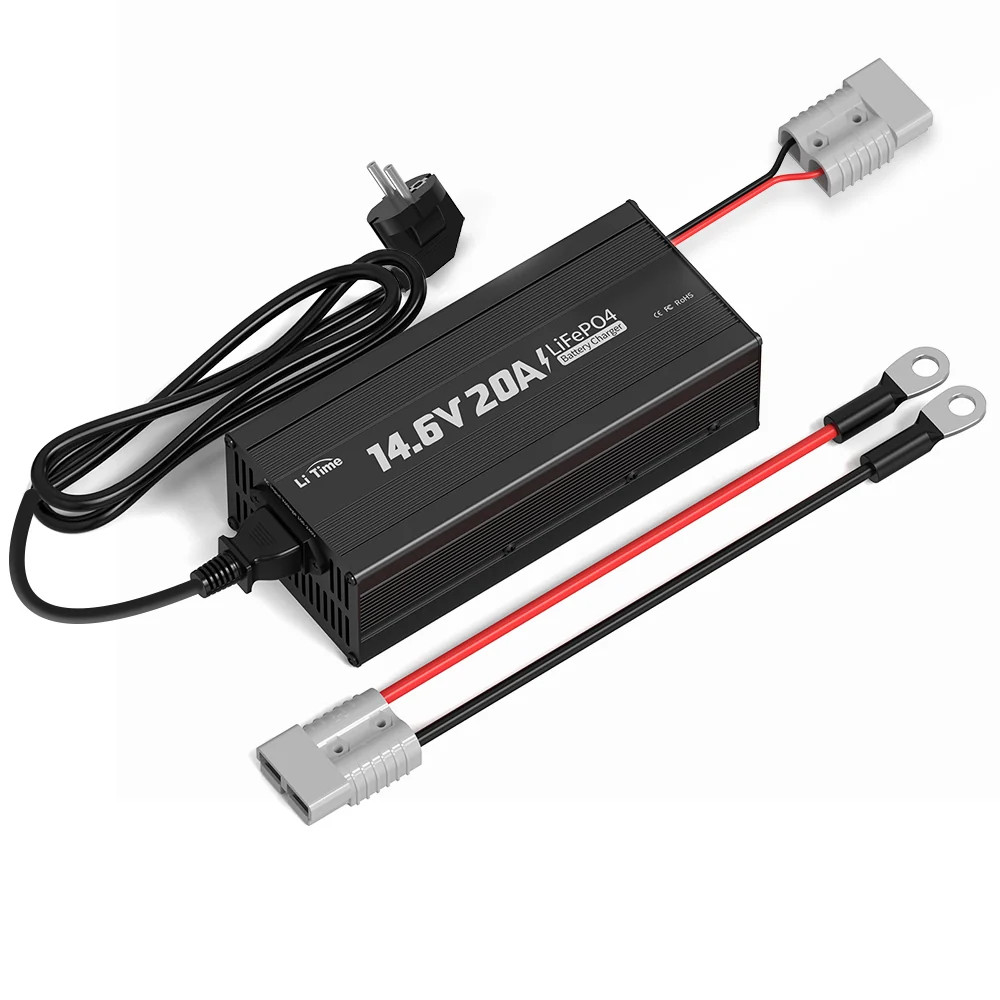

LiTime 12V 20A LiFePO4 Battery Charger
Mains charger delivering 14.6V at 20A for 12V LiFePO4 batteries. Features three-stage charging, battery activation and Anderson/M8 connections.
- Charging voltage : 14.6V
- Recommended / maximum charging current : 20 A maximum
- Weight : 1.3 kg
€99.99
Tax included
lei537.99
GET TO KNOW YOUR CHOICE
Explore the details.
Charging at 20A
The LiTime 20A charger charges 12V LiFePO4 batteries from a 100–240V AC mains supply. Its 14.6V output is intended for this battery chemistry. Select a 20A charging current only when it is supported by the connected battery's capacity and charging specifications.
Automatic charging and connections

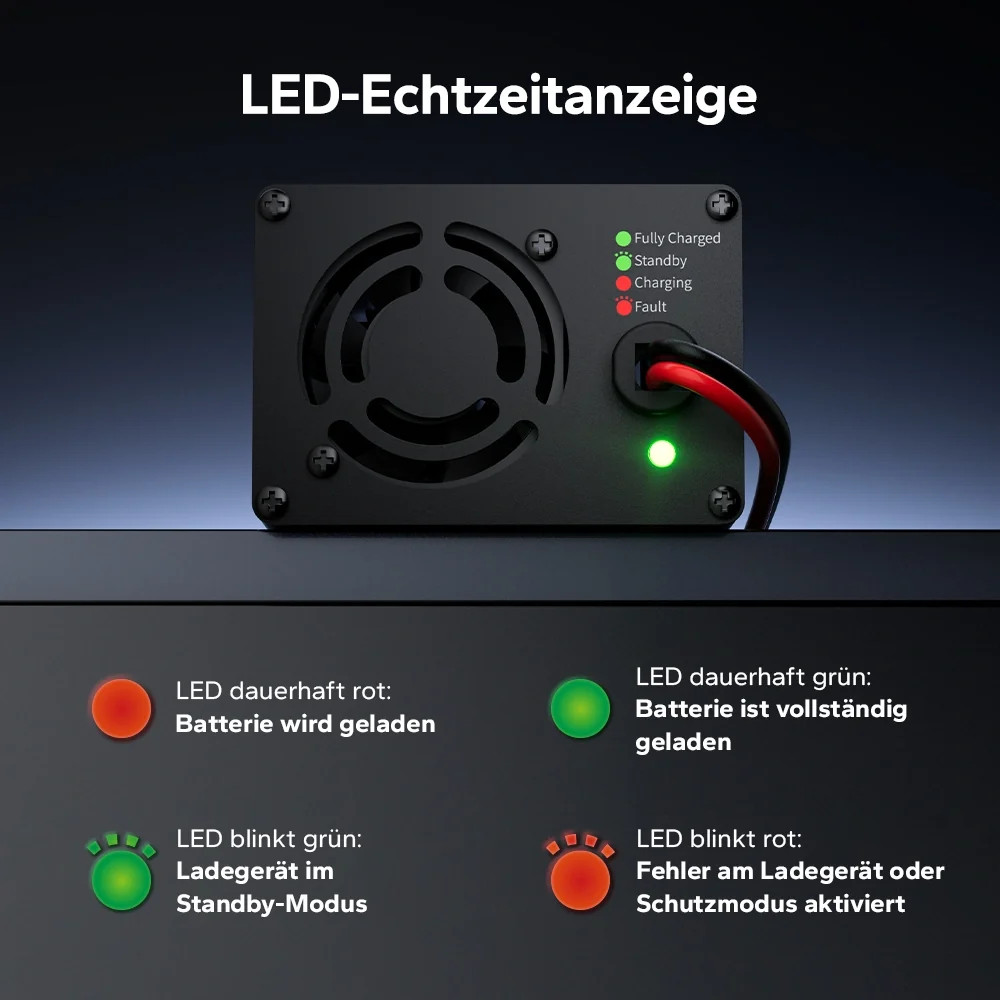

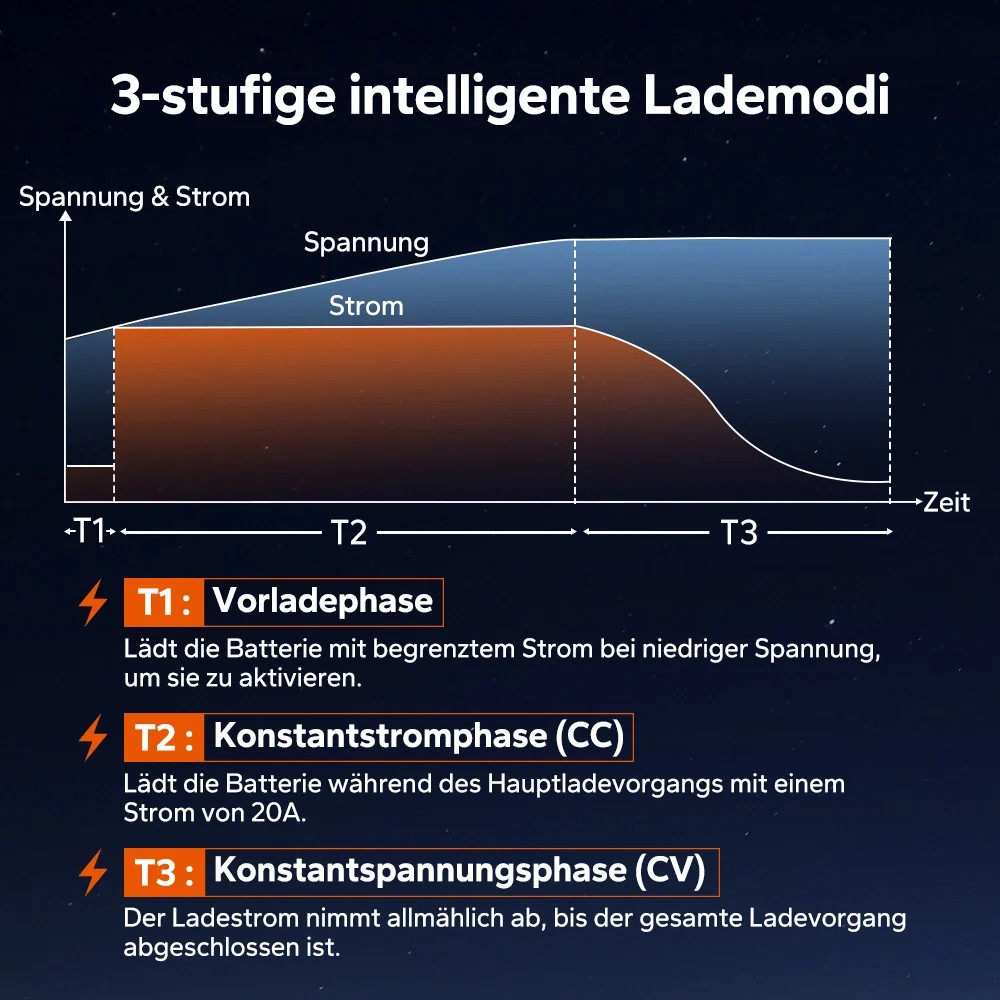

The process uses precharge, constant-current and constant-voltage stages. The activation function can wake a battery that has entered BMS protection. LED indicators show charging status, and the Anderson/M8 interface connects the charger to the battery terminals.
Planning the installation
The mains cable is 120cm long and the output cable is 145cm, including the Anderson extension. Check cable routing, correct polarity and ventilation access before use.
Safe use
Check the battery voltage, chemistry and permitted charging current before connection. Observe polarity, installation instructions and the operating conditions specified for the model. Do not use damaged cables or batteries.
Manufacturer
Shenzhen Litime Technology Co., Ltd
Room 301, Building B, Tongzhou Electronics Longgang Factory, No. 1 Baolong 5th Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, Guangdong 518116, China
Email: [email protected]
EU responsible operator
Starrysea GmbH
Klosterkoppel 8, 25485 Bilsen, Germania / Germany
Email: [email protected]
Systems and supply
|
Power supply
|
100–240V AC, 50/60Hz |
|---|---|
|
Charging voltage
|
14.6V |
|
Recommended / maximum charging current
|
20 A maximum |
|
Compatibility
|
12V LiFePO4 batteries |
Dimensions and weight
|
Weight
|
1.3 kg |
|---|---|
|
Dimensions L × W × H
|
203 × 100 × 54 mm |
