Honda BF10DK2 XRU Outboard engine images
Explore every detailView specifications

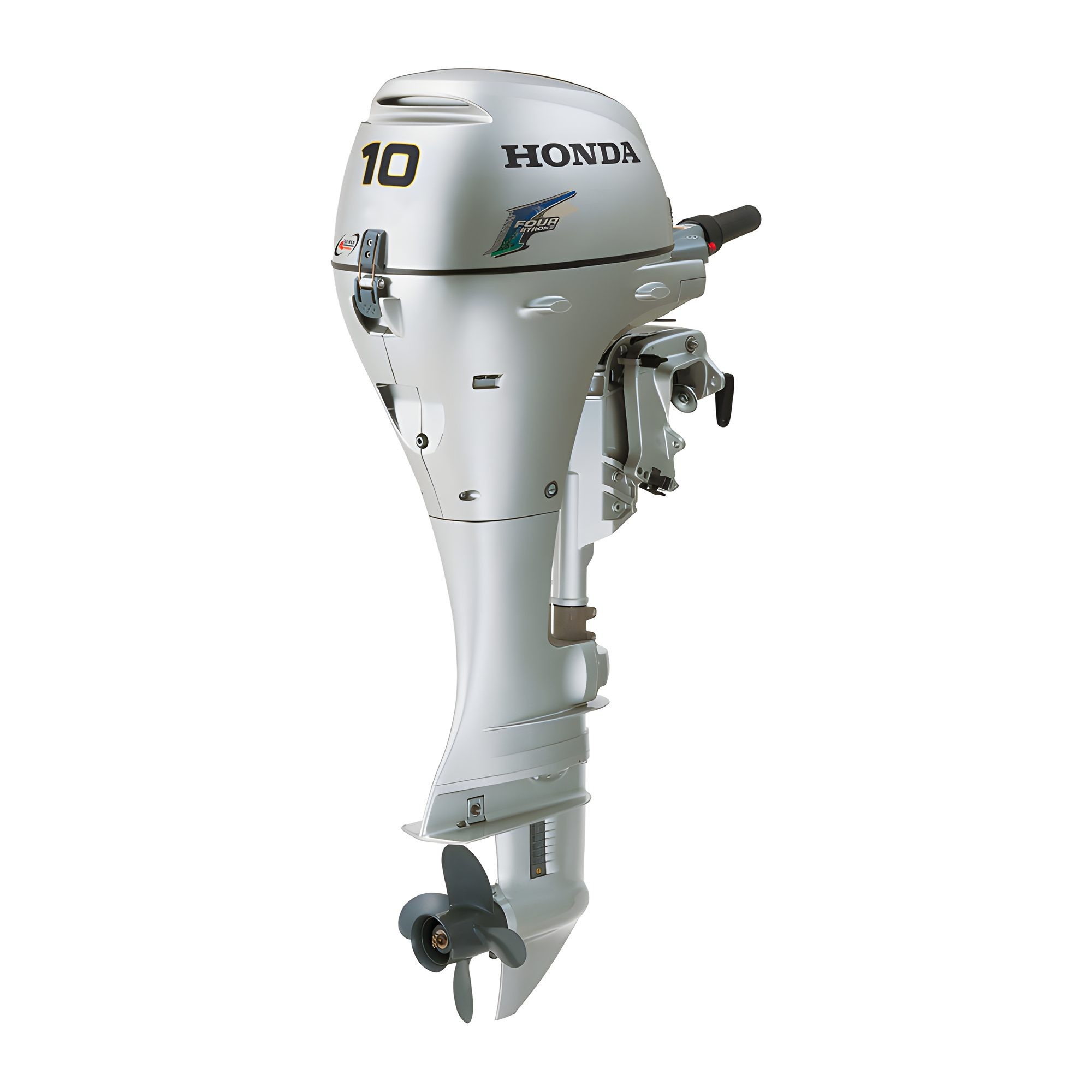

Honda BF10DK2 XRU Outboard engine
Honda BF10DK2 XRU, four-stroke outboard engine rated at 10 metric hp, with an extra long shaft. Manual and electric starting and remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 10 CP
- Shaft length : Extra long
- Weight : 52.5 kg
€3,464.23
Tax included
lei18,639.19
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF10DK2 XRU is the 10 metric hp version with an extra long shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Remote controls are installed at the boat’s helm. Match the configuration to the existing control system and mounting arrangement. Manual and electric starting are available for this version; prepare the electrical system according to the manual.
Mounting and adjustment
This version has an extra long shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Trim adjustment is manual, 5 positions; check the appropriate position for the mounting configuration.
Engine and performance
|
Power (metric hp)
|
10 CP |
|---|---|
|
Displacement (cm³)
|
222 cm³ |
|
Cylinders
|
2 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.33:1 |
Use and compatibility
|
Shaft length
|
Extra long |
|---|---|
|
Shaft height
|
703 mm |
Controls and adjustments
|
Control type
|
Remote control |
|---|---|
|
Starting
|
Manual and electric |
|
Trim
|
Manual, 5 positions |
Systems and supply
|
Alternator output
|
12 V / 12 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
610 mm |
|---|---|
|
Width
|
345 mm |
|
Height
|
1375 mm |
|
Weight
|
52.5 kg |
Product details
-
Brand
-
ReferenceBF10DK2 XRU
-
In stock1 Item
-
