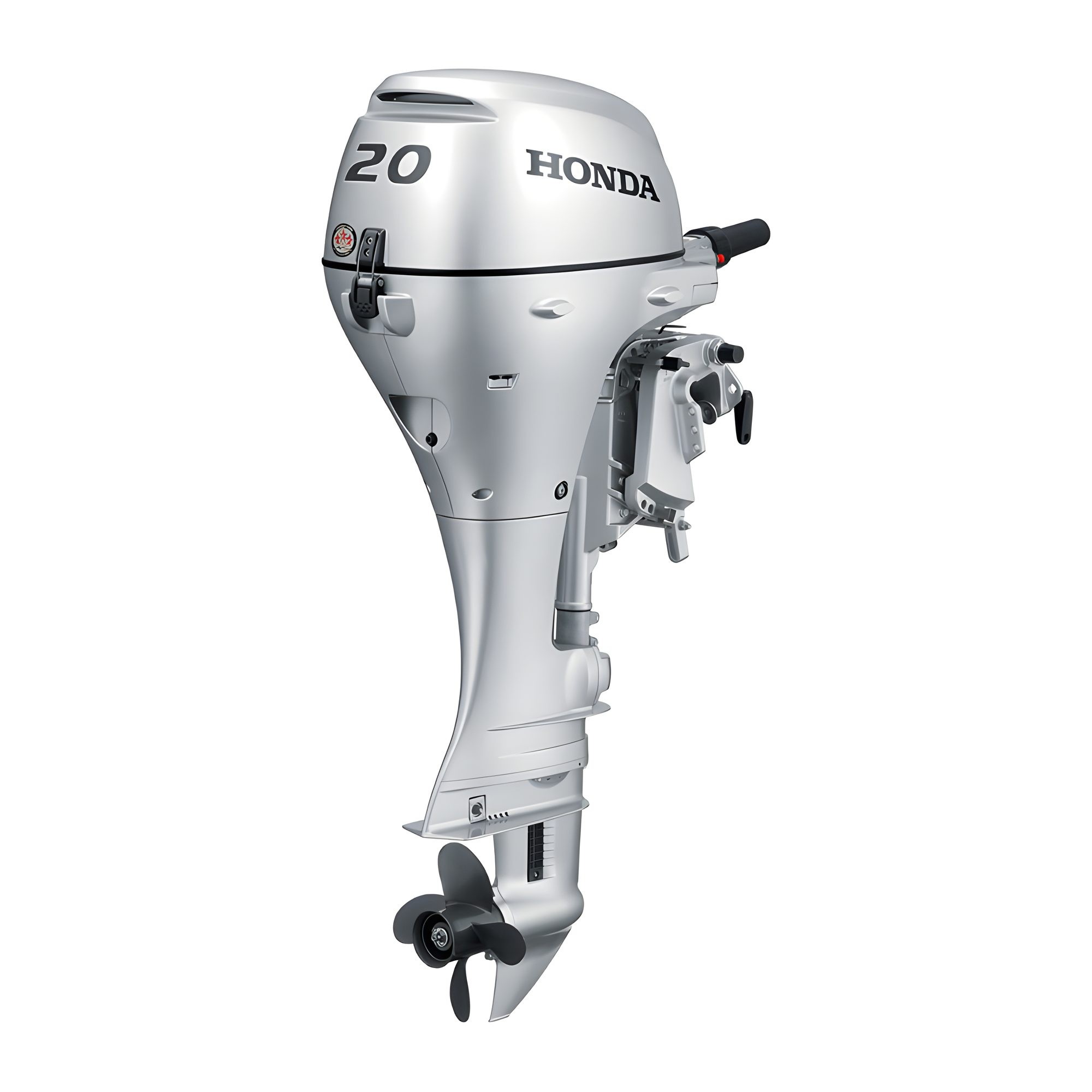

Honda BF20DK2 SHSU Outboard engine
Honda BF20DK2 SHSU, four-stroke outboard engine rated at 20 metric hp, with a short shaft. Manual and electric starting and tiller control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 20 CP
- Shaft length : Short
- Weight : 49 kg
€3,619.11
Tax included
lei19,472.52
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF20DK2 SHSU is the 20 metric hp version with a short shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Throttle and steering are controlled from the engine tiller. This version is for a boat configured for tiller control. Manual and electric starting are available for this version; prepare the electrical system according to the manual.
Mounting and adjustment
This version has a short shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Trim adjustment is manual, 5 positions; check the appropriate position for the mounting configuration.
Engine and performance
|
Power (metric hp)
|
20 CP |
|---|---|
|
Displacement (cm³)
|
350 cm³ |
|
Cylinders
|
2 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.08:1 |
Use and compatibility
|
Shaft length
|
Short |
|---|---|
|
Shaft height
|
433 mm |
Controls and adjustments
|
Control type
|
Tiller control |
|---|---|
|
Starting
|
Manual and electric |
|
Trim
|
Manual, 5 positions |
Systems and supply
|
Alternator output
|
12 V / 12 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
650 mm |
|---|---|
|
Width
|
350 mm |
|
Height
|
1110 mm |
|
Weight
|
49 kg |
Product details
-
Brand
-
ReferenceBF20DK2 SHSU
-
In stock1 Item
-
EAN13 code
