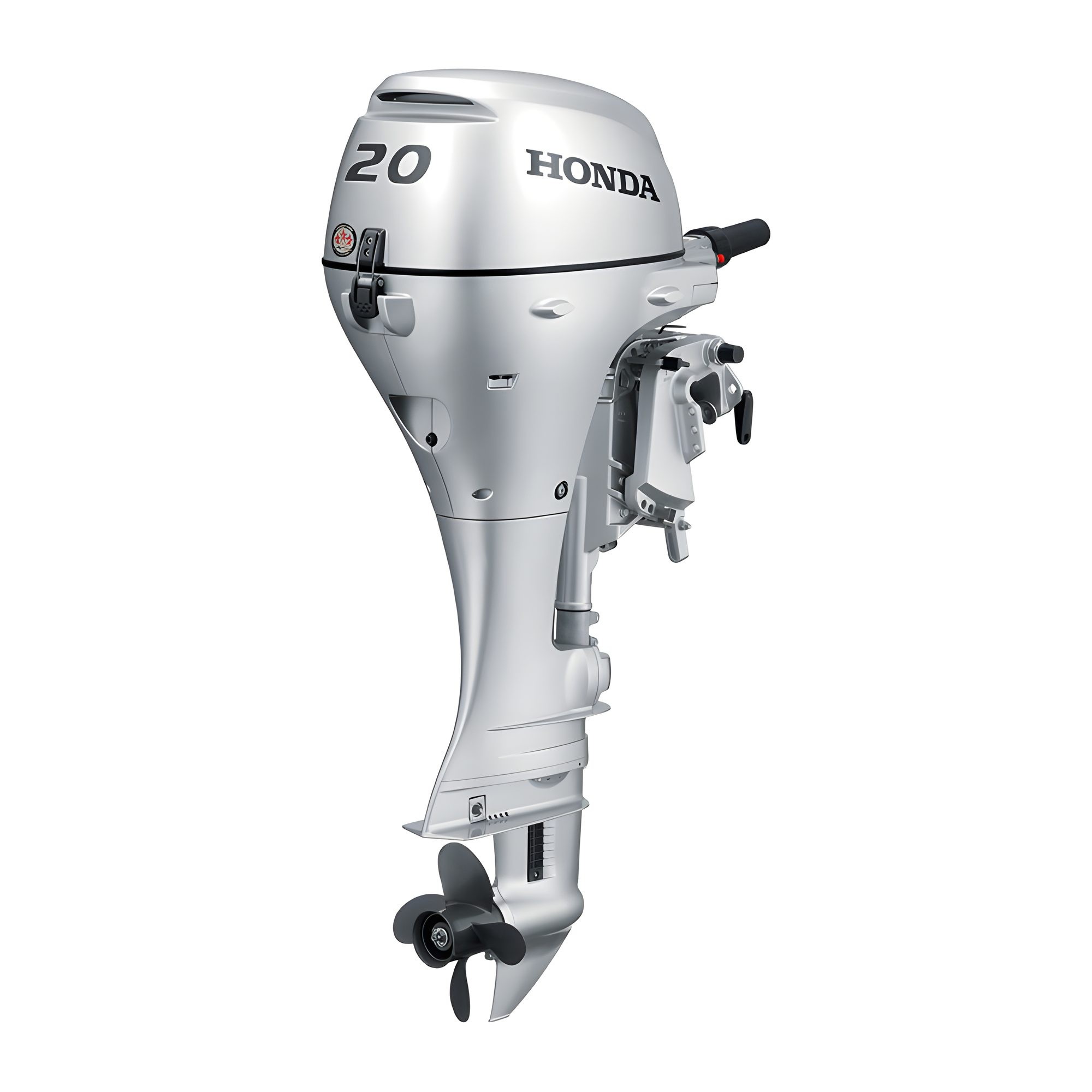

Honda BF20DK2 SRTU Outboard engine
Honda BF20DK2 SRTU, four-stroke outboard engine rated at 20 metric hp, with a short shaft. Manual and electric starting and remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 20 CP
- Shaft length : Short
- Weight : 57 kg
€4,311.23
Tax included
lei23,196.45
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF20DK2 SRTU is the 20 metric hp version with a short shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Remote controls are installed at the boat’s helm. Match the configuration to the existing control system and mounting arrangement. Manual and electric starting are available for this version; prepare the electrical system according to the manual.
Mounting and adjustment
This version has a short shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Power Tilt provides electric engine tilting; follow the manual to adjust the operating angle.
Engine and performance
|
Power (metric hp)
|
20 CP |
|---|---|
|
Displacement (cm³)
|
350 cm³ |
|
Cylinders
|
2 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.08:1 |
Use and compatibility
|
Shaft length
|
Short |
|---|---|
|
Shaft height
|
433 mm |
Controls and adjustments
|
Control type
|
Remote control |
|---|---|
|
Starting
|
Manual and electric |
|
Trim
|
Power Tilt |
Systems and supply
|
Alternator output
|
12 V / 12 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
650 mm |
|---|---|
|
Width
|
350 mm |
|
Height
|
1110 mm |
|
Weight
|
57 kg |
Product details
-
Brand
-
ReferenceBF20DK2 SRTU
-
In stock1 Item
-
EAN13 code
