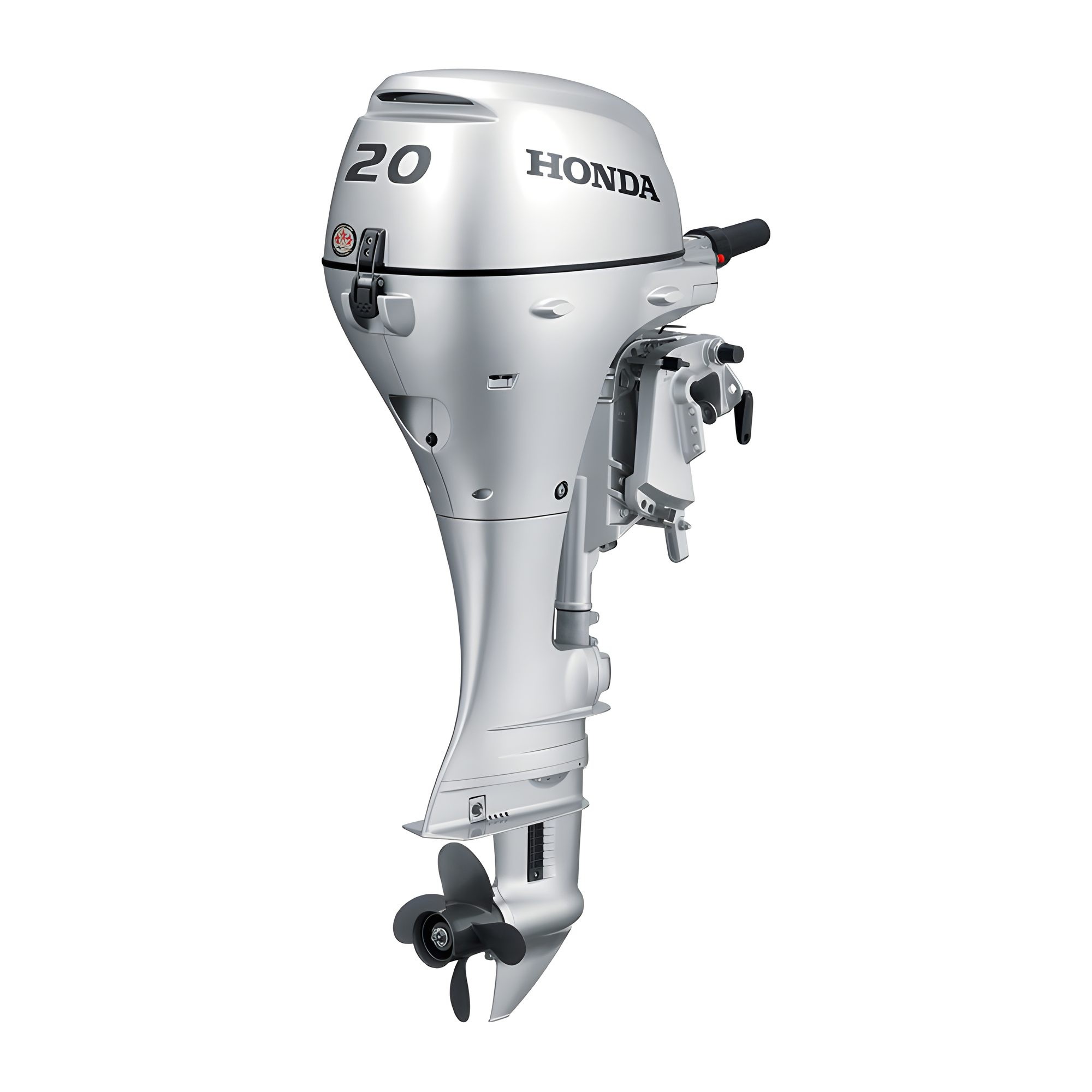

Honda BF20DK2 SRU Outboard engine
Honda BF20DK2 SRU, four-stroke outboard engine rated at 20 metric hp, with a short shaft. Manual and electric starting and remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 20 CP
- Shaft length : Short
- Weight : 49.5 kg
€3,849.01
Tax included
lei20,709.49
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF20DK2 SRU is the 20 metric hp version with a short shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Remote controls are installed at the boat’s helm. Match the configuration to the existing control system and mounting arrangement. Manual and electric starting are available for this version; prepare the electrical system according to the manual.
Mounting and adjustment
This version has a short shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Trim adjustment is manual, 5 positions; check the appropriate position for the mounting configuration.
Engine and performance
|
Power (metric hp)
|
20 CP |
|---|---|
|
Displacement (cm³)
|
350 cm³ |
|
Cylinders
|
2 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.08:1 |
Use and compatibility
|
Shaft length
|
Short |
|---|---|
|
Shaft height
|
433 mm |
Controls and adjustments
|
Control type
|
Remote control |
|---|---|
|
Starting
|
Manual and electric |
|
Trim
|
Manual, 5 positions |
Systems and supply
|
Alternator output
|
12 V / 12 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
650 mm |
|---|---|
|
Width
|
350 mm |
|
Height
|
1110 mm |
|
Weight
|
49.5 kg |
Product details
-
Brand
-
ReferenceBF20DK2 SRU
-
In stock1 Item
-
EAN13 code
