Tohatsu MFS20E W EPTL White – outboard engine
Tohatsu MFS20E W EPTL White, four-stroke outboard engine rated at 20 metric hp, with a long shaft. Manual and electric starting and remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 20 CP
- Shaft length : Long
- Weight : 52.5 kg
€4,596.79
Tax included
lei24,732.90
GET TO KNOW YOUR CHOICE
Explore the details.
Tohatsu MFS20E W EPTL White is the 20 metric hp version with a long shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Remote controls are installed at the boat’s helm. Match the configuration to the existing control system and mounting arrangement. Manual and electric starting are available for this version; prepare the electrical system according to the manual.
Mounting and adjustment
The long shaft version belongs to the nominal 20 inch class. The mounting dimension “Transom Height” in the manufacturer’s documentation is 562 mm and differs from the nominal shaft class; check fit with the boat transom according to the installation instructions. Power Tilt provides electric engine tilting; follow the manual to adjust the operating angle.
Configuration details
- Colour: Beluga White
- Fuel: Petrol, EFI fuel injection
- Engine oil capacity: 1.2 L with filter replacement; 1.0 L without filter replacement.
- Bore × stroke: 61 x 57 mm (2.40 x 2.24 in)
Equipment and selection information

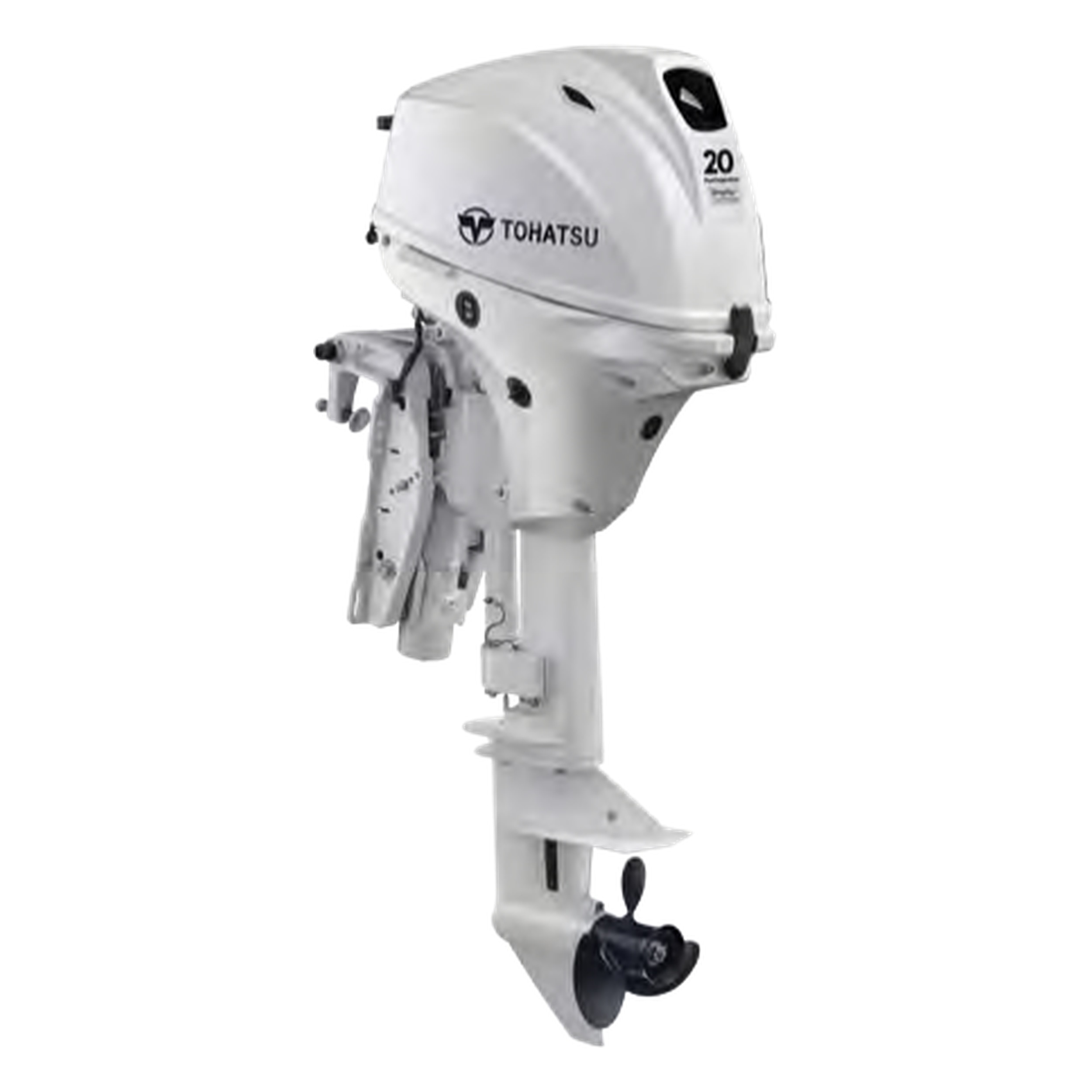

The weight applies to this version, as specified in the manufacturer’s manual, and excludes packaging. The photograph shows the model range; the controls and equipment are those specified for this version.
Engine and performance
|
Power (metric hp)
|
20 CP |
|---|---|
|
Displacement (cm³)
|
333 cm³ |
|
Cylinders
|
2 |
|
Maximum engine speed
|
5400–6100 rpm |
|
Gear ratio
|
2.15:1 |
Use and compatibility
|
Shaft length
|
Long |
|---|---|
|
Shaft height
|
508 mm (20 in) |
Controls and adjustments
|
Control type
|
Remote control |
|---|---|
|
Starting
|
Manual and electric |
|
Trim
|
Power Tilt |
Systems and supply
|
Alternator output
|
12 V / 12 A (standard) |
|---|---|
|
Fuel tank capacity
|
12 L, external |
Dimensions and weight
|
Weight
|
52.5 kg |
|---|
