Honda BF200D XCDU Outboard engine images
Explore every detailView specifications

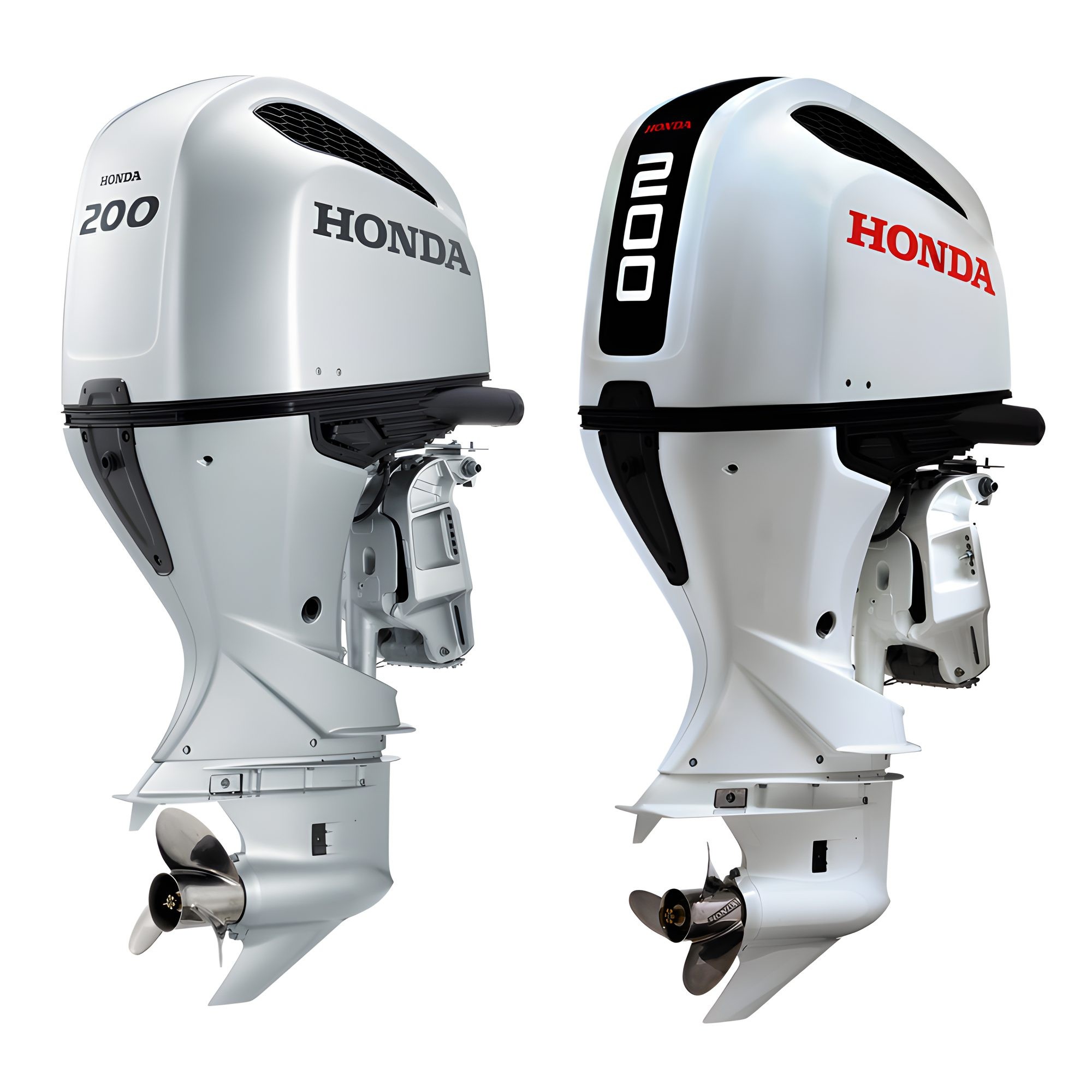

Honda BF200D XCDU Outboard engine
Honda BF200D XCDU, four-stroke outboard engine rated at 200 metric hp, with an extra long shaft. Electric starting and DBW remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 200 CP
- Shaft length : Extra long
- Weight : 286 kg
€24,680.37
Tax included
lei132,792.04
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF200D XCDU is the 200 metric hp version with an extra long shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
This version uses DBW remote control. Check the control system and compatible components for the boat’s helm. Electric starting requires an electrical system and starting battery sized according to the manual.
Mounting and adjustment
This version has an extra long shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Power Trim & Tilt provides electric trim adjustment and engine tilting through dedicated controls, within the limits specified in the manual.
Engine and performance
|
Power (metric hp)
|
200 CP |
|---|---|
|
Displacement (cm³)
|
3583 cm³ |
|
Cylinders
|
6 |
|
Maximum engine speed
|
5000–6000 rpm |
|
Gear ratio
|
2.00:1 |
Use and compatibility
|
Shaft length
|
Extra long |
|---|---|
|
Shaft height
|
635 mm |
Controls and adjustments
|
Control type
|
DBW remote control |
|---|---|
|
Starting
|
Electric |
|
Trim
|
Power Trim & Tilt |
Systems and supply
|
Alternator output
|
12 V / 60 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
Compatible (kit not included) |
|---|
Dimensions and weight
|
Length
|
948 mm |
|---|---|
|
Width
|
660 mm |
|
Height
|
1916 mm |
|
Weight
|
286 kg |
Product details
-
Brand
-
ReferenceBF200D XCDU
-
In stock1 Item
-
EAN13 code
