LiTime 12 V 100 Ah H168 LiFePO4 Battery with Bluetooth images
Explore every detailView specifications
LiTime 12 V 100 Ah H168 LiFePO4 Battery with Bluetooth
A compact 1280 Wh battery with 168 mm case height and Bluetooth monitoring for restricted installation spaces.
- Rated capacity : 100Ah
- Nominal voltage : 12.8V
- Maximum continuous discharge current : 100A
€313.49
Tax included
lei1,686.72
GET TO KNOW YOUR CHOICE
Explore the details.
The DIN H5 format provides 100 Ah in a 240×176×168 mm enclosure with 100 A BMS and low-temperature charge protection.

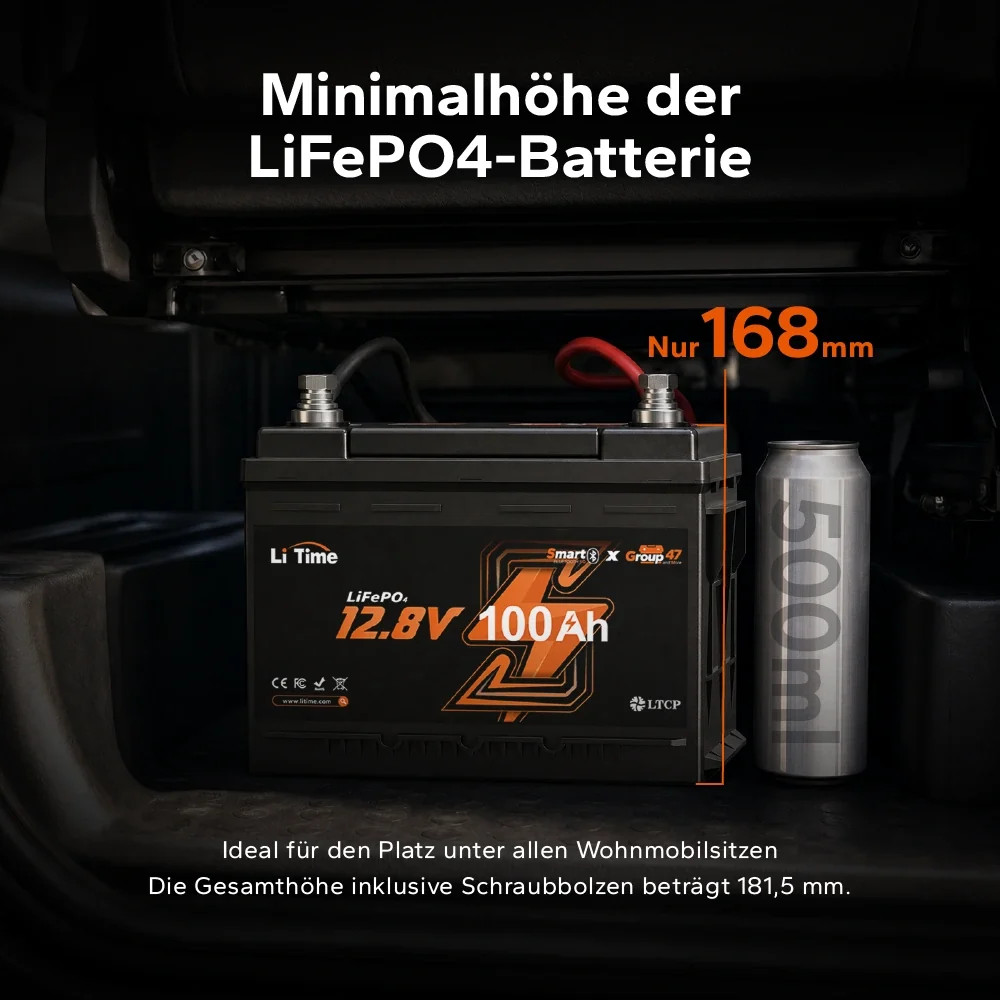

Total height including screws is 181.5 mm. Measure the compartment and check the seat mechanism before installation.
Safe use
Match the system voltage and current and use a compatible LiFePO4 charger. Protect the terminals against short circuits and secure the battery before use. Do not use a damaged battery or open the enclosure. Follow the charging temperature limits and instructions for the exact model. This is a service/deep-cycle battery, not a combustion-engine starting battery.
Manufacturer
Shenzhen Litime Technology Co., Ltd
Room 301, Building B, Tongzhou Electronics Longgang Factory, No. 1 Baolong 5th Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, Guangdong 518116, China
Email: [email protected]
EU responsible operator
Starrysea GmbH
Klosterkoppel 8, 25485 Bilsen, Germania / Germany
Email: [email protected]
Systems and supply
|
Nominal voltage
|
12.8V |
|---|---|
|

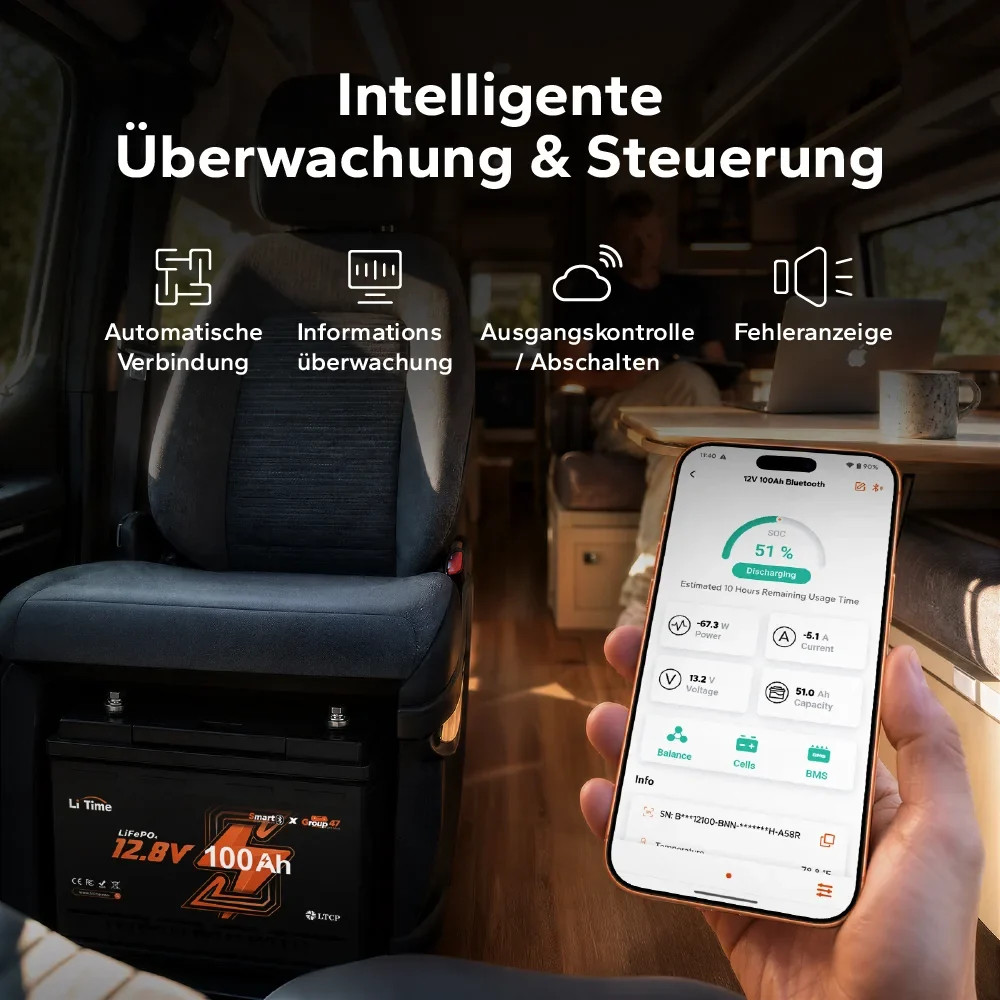

BMS and Bluetooth
|
BMS 100 A |
|
Rated capacity
|
100Ah |
|
Charging voltage
|
14,4 ± 0,2 V |
|
Recommended / maximum charging current
|
20 A / 100 A |
|
Maximum continuous discharge current
|
100A |
|
Battery expansion
|
4P4S |
|

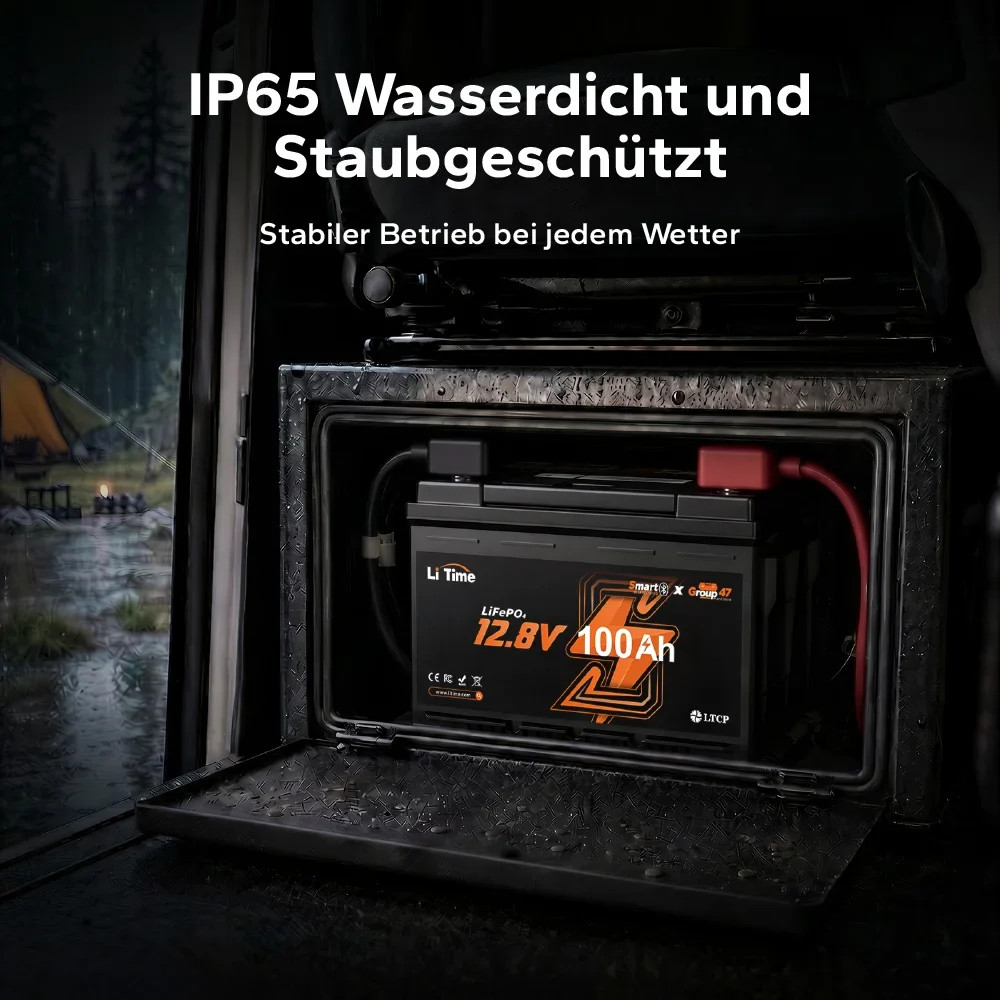

Ingress protection
|
IP65 |
|
Compositions
|
ABS |
|
Battery details
|
LiFePO4; 1280 Wh |
Navigation and connectivity
|
Bluetooth
|
Yes |
|---|
Dimensions and weight
|
Weight
|
10.28 kg |
|---|---|
|
Dimensions L × W × H
|
240 × 176 × 168 mm (181.5 mm including terminal screws) |
Product details
-
Brand
-
ReferenceLT-52264139620633
-
In stock5 Items
-
EAN13 code
