LiTime 36V 15A IP66 LiFePO4 Battery Charger
Charger for 36V LiFePO4 systems, delivering 43.8V at 15A in an IP66 housing. A carry handle and mounting bracket support portable use or fixed installation.
- Charging voltage : 43.8 V
- Recommended / maximum charging current : 15 A maximum
- Weight : 1.8 kg
€155.99
Tax included
lei839.30
GET TO KNOW YOUR CHOICE
Explore the details.
Charging a 36V system
The LiTime 15A charger is intended for LiFePO4 batteries in 36V systems, including trolling-motor and golf-cart applications. Its 43.8V output is the charging voltage, and it accepts a 100–240V AC mains supply.
Mounting and control

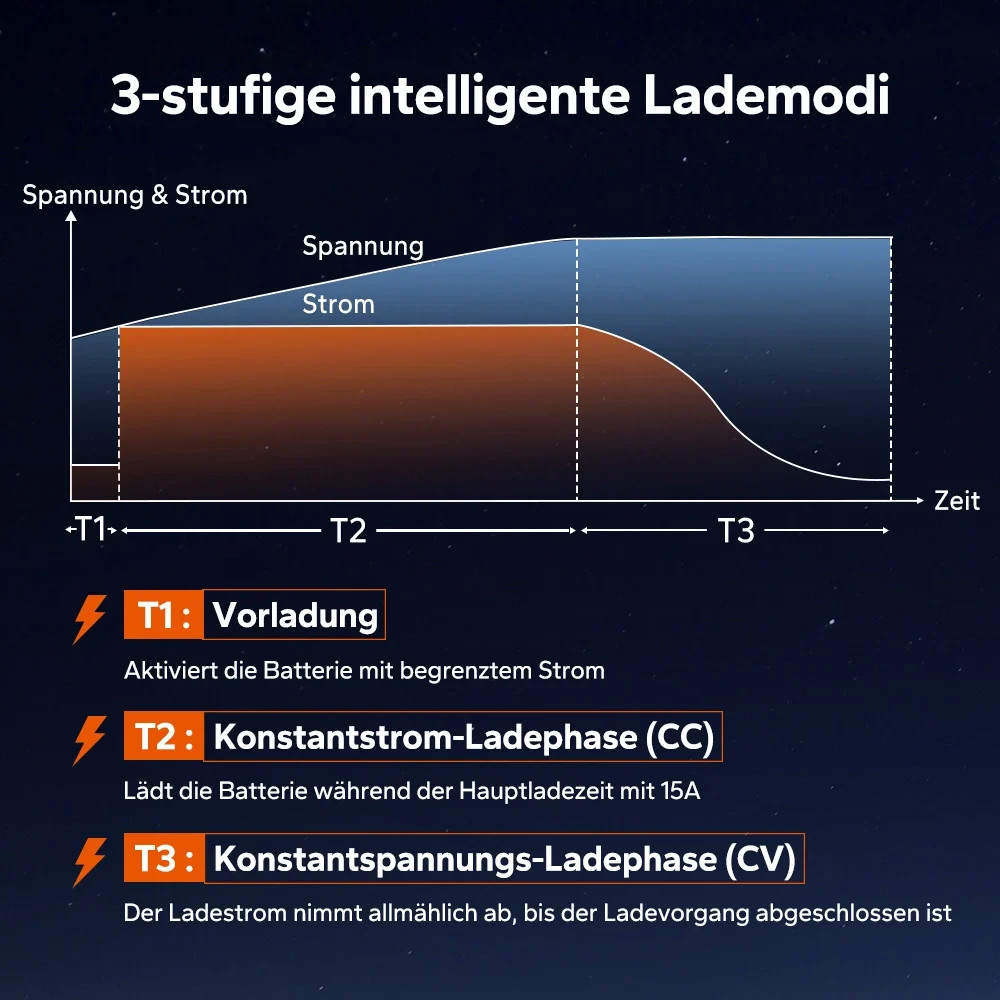

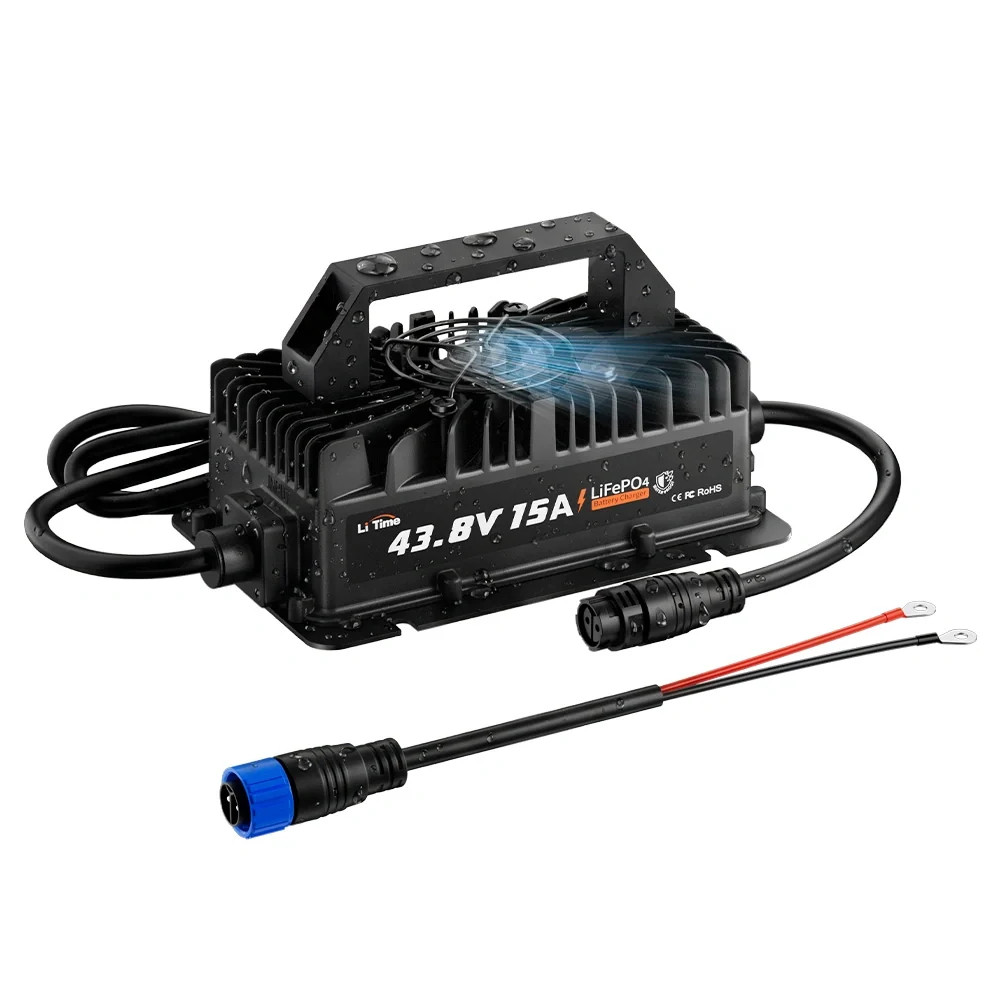

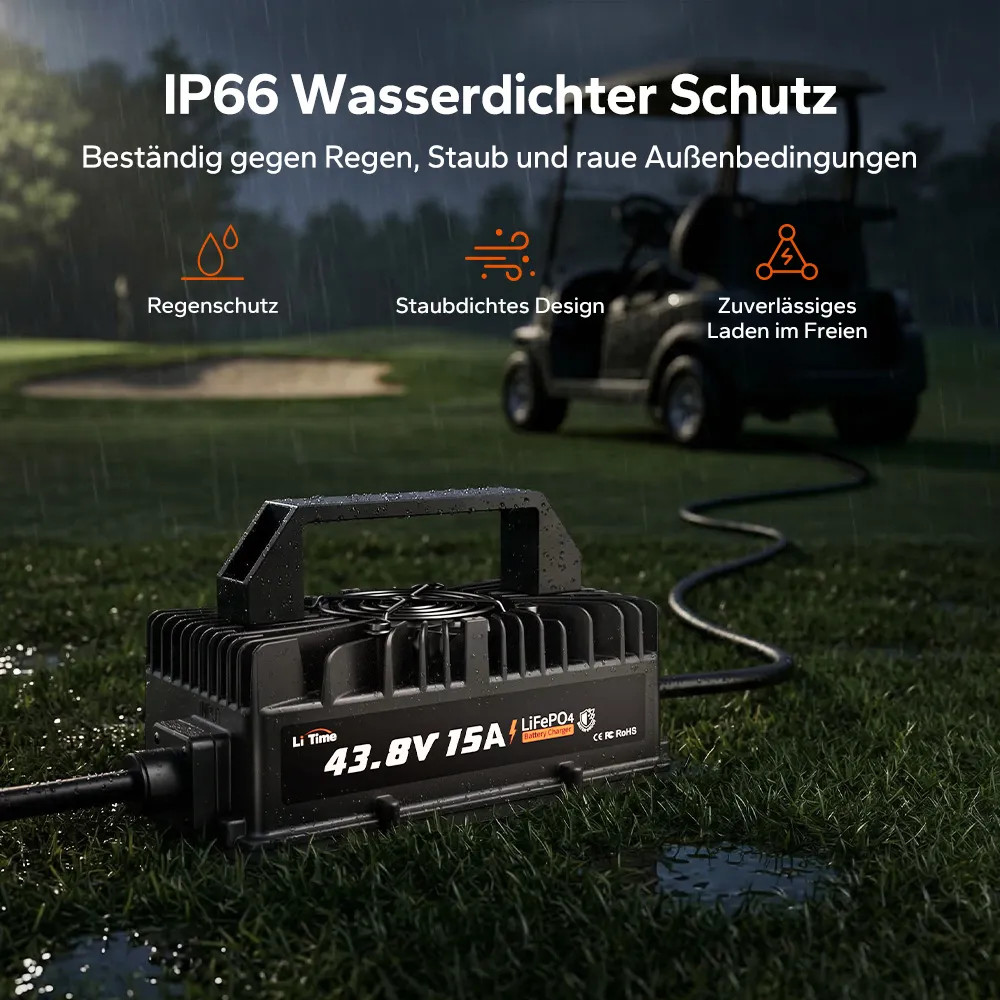

The aluminium housing has an IP66 rating and an integrated fan. A handle supports carrying, while the bracket allows fixed installation. Three-stage charging includes precharge, constant current and constant voltage. LED indicators show the charging process.
Compatibility and connection

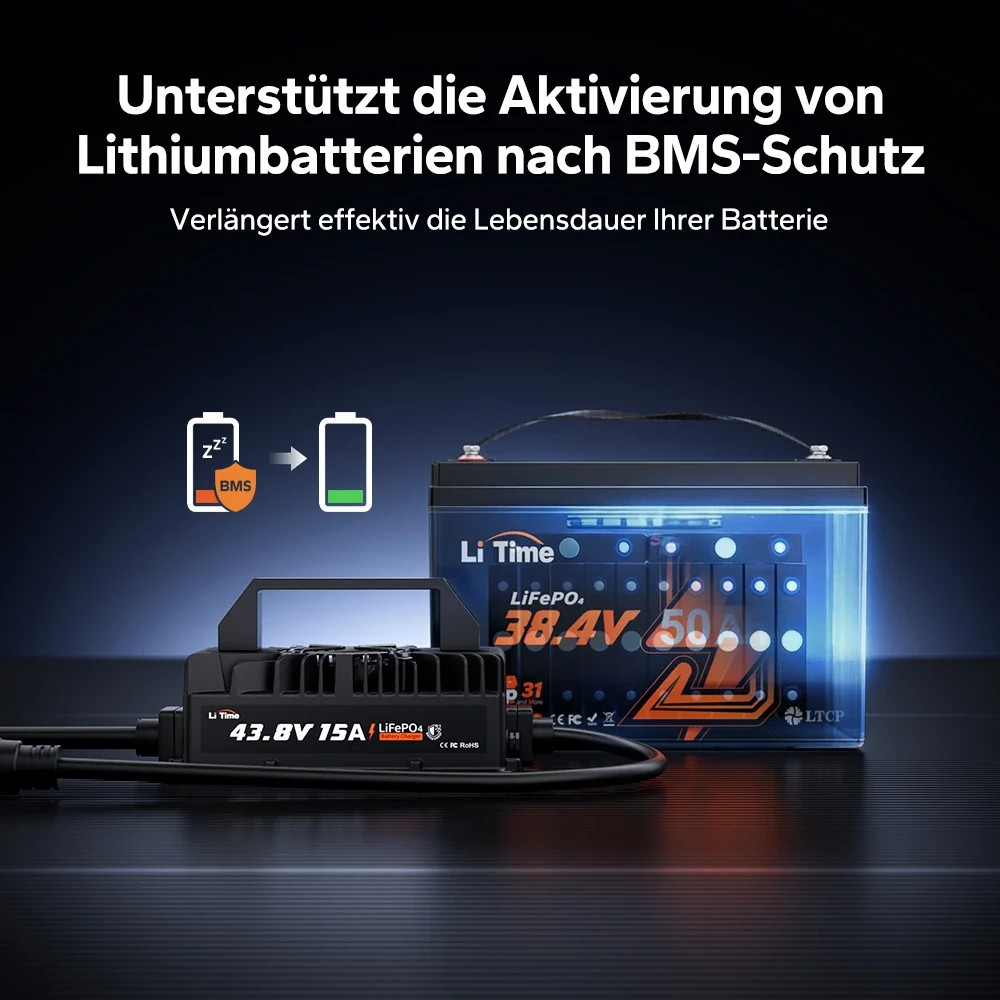

The activation function can wake a battery in BMS protection. A protected connector and M8 terminals provide the battery connection. Check that the battery supports a 15A charging current and the LiFePO4 charging profile before use.
Safe use
Check the battery voltage, chemistry and permitted charging current before connection. Observe polarity, installation instructions and the operating conditions specified for the model. Do not use damaged cables or batteries.
Manufacturer
Shenzhen Litime Technology Co., Ltd
Room 301, Building B, Tongzhou Electronics Longgang Factory, No. 1 Baolong 5th Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, Guangdong 518116, China
Email: [email protected]
EU responsible operator
Starrysea GmbH
Klosterkoppel 8, 25485 Bilsen, Germania / Germany
Email: [email protected]
Systems and supply
|
Power supply
|
100–240V AC, 50/60Hz |
|---|---|
|
Charging voltage
|
43.8 V |
|
Recommended / maximum charging current
|
15 A maximum |
|
Ingress protection
|
IP66 |
|
Compatibility
|
36V LiFePO4 batteries |
Dimensions and weight
|
Weight
|
1.8 kg |
|---|---|
|
Dimensions L × W × H
|
188 × 124 × 113 mm |
