Honda BF4AH LHNU Outboard engine images
Explore every detailView specifications
Honda BF4AH LHNU Outboard engine
Honda BF4AH LHNU, four-stroke outboard engine rated at 4 metric hp, with a long shaft. Manual recoil starting and tiller control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 4 CP
- Shaft length : Long
- Weight : 27.5 kg
€1,520.97
Tax included
lei8,183.54
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF4AH LHNU is the 4 metric hp version with a long shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Throttle and steering are controlled from the engine tiller. This version is for a boat configured for tiller control. The engine is started manually with a recoil starter.
Mounting and adjustment
This version has a long shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Trim adjustment is manual, 5 positions; check the appropriate position for the mounting configuration.
Equipment and selection information

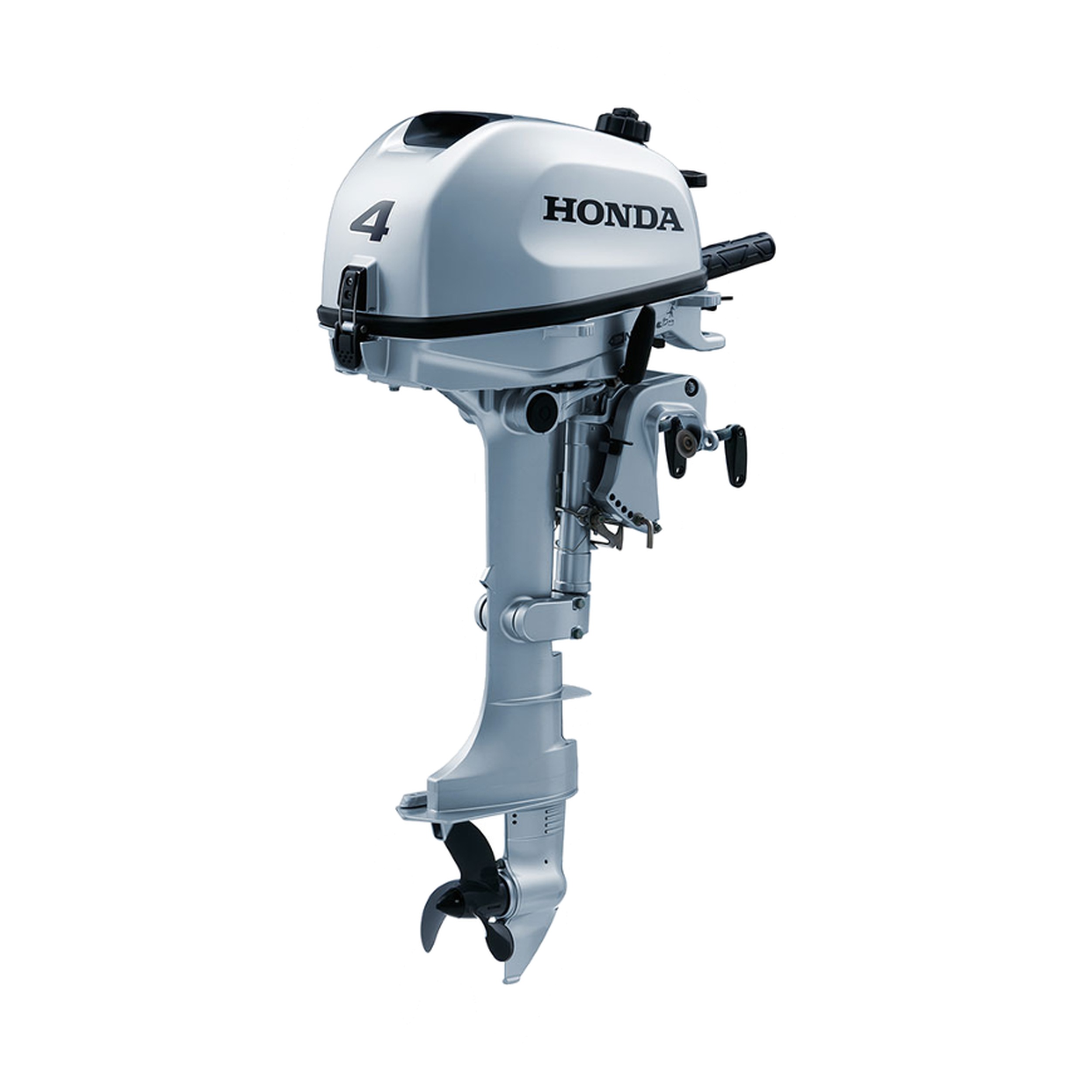

Presentation image of the Honda 4 range. The controls and shaft length are those specified for this version.
Engine and performance
|
Power (metric hp)
|
4 CP |
|---|---|
|
Displacement (cm³)
|
127 cm³ |
|
Cylinders
|
1 |
|
Maximum engine speed
|
4500–5500 rpm |
|
Gear ratio
|
2.08:1 |
Use and compatibility
|
Shaft length
|
Long |
|---|---|
|
Shaft height
|
561 mm |
Controls and adjustments
|
Control type
|
Tiller control |
|---|---|
|
Starting
|
Manual recoil starting |
|
Trim
|
Manual, 5 positions |
Systems and supply
|
Alternator output
|
No alternator |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
No |
|---|
Dimensions and weight
|
Length
|
524 mm |
|---|---|
|
Width
|
347 mm |
|
Height
|
1147 mm |
|
Weight
|
27.5 kg |
Product details
-
Brand
-
ReferenceBF4AH LHNU
-
In stock1 Item
-
EAN13 code
