Honda BF50DK4 SRTZ Outboard engine
Honda BF50DK4 SRTZ, four-stroke outboard engine rated at 50 metric hp, with a short shaft. Electric starting and remote control; check the appropriate mounting arrangement for your boat.
- Power (metric hp) : 50 CP
- Shaft length : Short
- Weight : 96 kg
€6,370.65
Tax included
lei34,277.10
GET TO KNOW YOUR CHOICE
Explore the details.
Honda BF50DK4 SRTZ is the 50 metric hp version with a short shaft. The controls, starting system and adjustments below describe this configuration; full specifications are in the “Technical data” tab.
Controls and starting
Remote controls are installed at the boat’s helm. Match the configuration to the existing control system and mounting arrangement. Electric starting requires an electrical system and starting battery sized according to the manual.
Mounting and adjustment
This version has a short shaft; choose it according to the boat transom and mounting recommendations, rather than engine power alone. Power Trim & Tilt provides electric trim adjustment and engine tilting through dedicated controls, within the limits specified in the manual.
Equipment and selection information
Confirm overall mounting dimensions for the ordered version before installation.

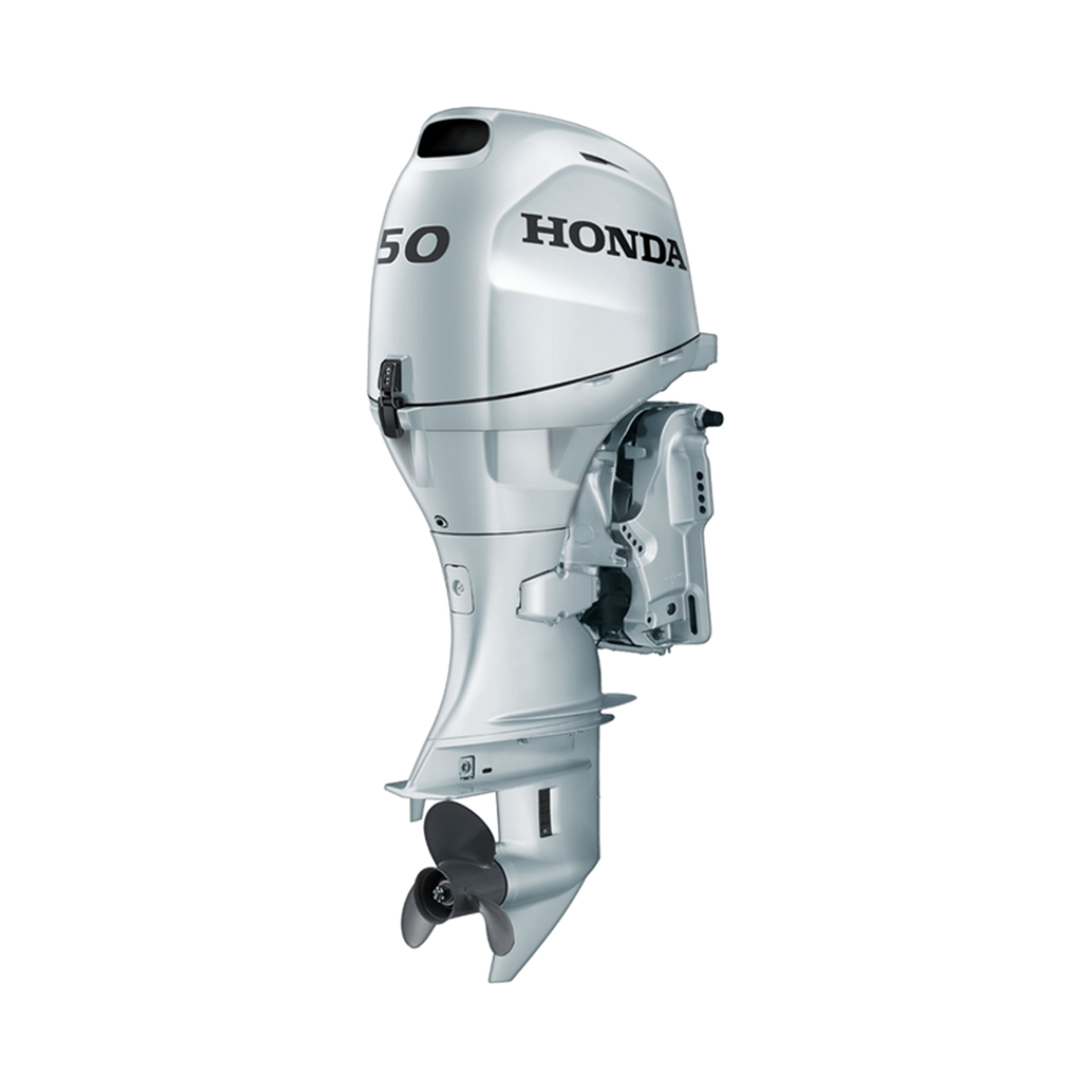

Presentation image of the Honda 50 range. The controls and shaft length are those specified for this version.
Engine and performance
|
Power (metric hp)
|
50 CP |
|---|---|
|
Displacement (cm³)
|
808 cm³ |
|
Cylinders
|
3 |
|
Maximum engine speed
|
5500–6000 rpm |
|
Gear ratio
|
2.08:1 |
Use and compatibility
|
Shaft length
|
Short |
|---|---|
|
Shaft height
|
416 mm |
Controls and adjustments
|
Control type
|
Remote control |
|---|---|
|
Starting
|
Electric |
|
Trim
|
Power Trim & Tilt |
Systems and supply
|
Alternator output
|
Alternator 22 A; battery charging 17 A |
|---|
Navigation and connectivity
|
NMEA2000 compatibility
|
Compatible (kit not included) |
|---|
Dimensions and weight
|
Weight
|
96 kg |
|---|
Product details
-
Brand
-
ReferenceBF50DK4 SRTZ
-
In stock1 Item
-
EAN13 code
